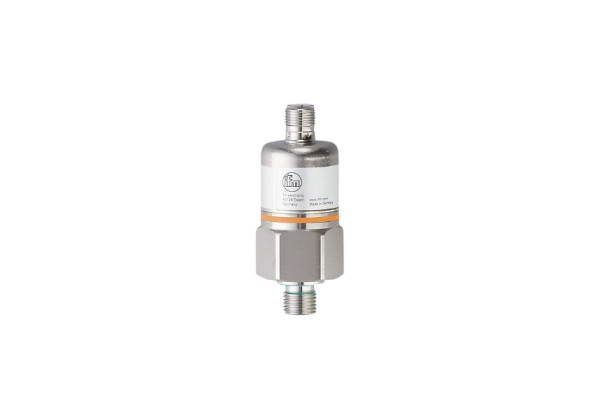

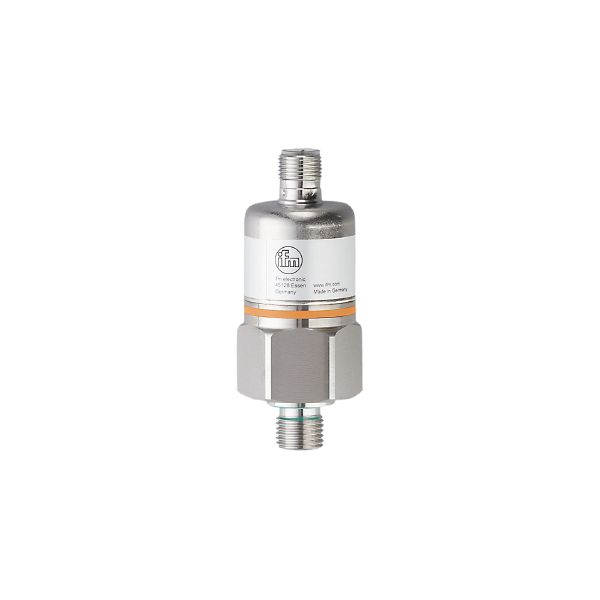

PA3522 - efector500-PA-100-SBG14-A-ZVG/US/ /V

Brand: IFM Electronic

Code: PA3522

Precise linear 4...20 mA output signal
High repeatability and low linearity error
With long-term stability thanks to high overload protection
Robust stainless steel housing for use in harsh industrial environments
Large operating temperature range and high protection rating

Product characteristics

Number of inputs and outputs

Number of analogue outputs: 1

Measuring range

0...100 bar

0...1450 psi

0...10 MPa

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5

Application

Special feature

Gold-plated contacts

Application

for industrial applications

Media

Liquids

Conditionally suitable for

use in gases at pressures > 25 bar only on request

Medium temperature [°C]

-25...90; (on request: -40...90 °C)

Min. bursting pressure

650 bar

9425 psi

65 MPa

Pressure rating

300 bar

4350 psi

30 Mpa

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	9.6...32 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection	yes

Measuring/setting range

Measuring range

0...100 bar

0...1450 psi

0...10 MPa

Accuracy / deviations

Repeatability [% of the span]	< 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,1; (0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2; (0...80 °C)

Response times

Step response time analogue output [ms]	3

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	30 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
radiation of interference	according to the automotive directive 2004/104/EC
CISPR 25
immunity	according to the automotive directive 2004/104/EC
ISO 11452-2 HF radiated	100 V/m
ISO 7637-2 pulse	severity level 4

Shock resistance

DIN EN 60068-2-27	50 g (11 ms)
DIN EN 61373	category 3

Vibration resistance

DIN EN 60068-2-6	20 g (10...2000 Hz)
DIN EN 61373	category 2

MTTF [years]

507

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Railway applications

DIN EN 50155 / IEC 60571

Klasse T3, C1, S1

Mechanical data

Weight [g]	217.5
Materials	stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; Sealing: FKM
Min. pressure cycles	100 million
Tightening torque [Nm]	25...35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Restrictor element integrated	no (can be retrofitted)

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
