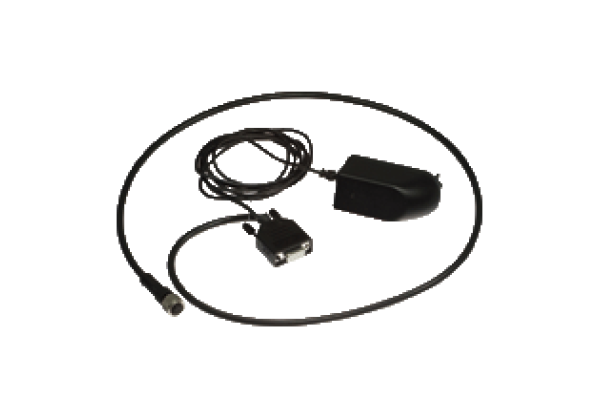

Cable unit PCV-KBL-V19-STR-RS485
Brand: Pepperl+Fuchs
Code: PCV-KBL-V19-STR-RS485
Cable unit with power supply for USB / RS-485 interface converter , Power supply for 95 - 230 V AC
Datasheet excerpt: Technical data of PCV-KBL-V19-STR-RS485
| Product Description |
|---|
| Cable unit with power supply for USB / RS-485 interface converter |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 95... 230 V AC, 40... 60 Hz | |
| Output voltage | 24 V DC | |
| Output rated operating current | max. 1 A | |
| Interface 1 | ||
| Connection of | Interface converter | |
| Interface 2 | ||
| Connection of | Read head | |
| Mechanical specifications | ||
| Connection type | Female cordset, M12, 8-pin, shielded, PVC cable 9-pin Sub-D socket | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
