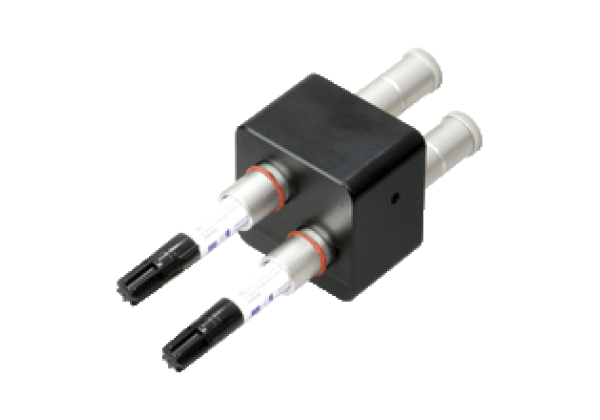

Marker head PCV-LM25
Brand: Pepperl+Fuchs
Code: PCV-LM25
Marker head for 25 mm code tape, For 25 mm code tapes, Can be used for PCV80..., PCV100..., and PCV130... readers, Includes 2 x edding® 3000 permanent markers
Datasheet excerpt: Technical data of PCV-LM25
| Product Description |
|---|
| Marker head for 25 mm code tape |
| General specifications | ||
|---|---|---|
| Description | Marker head for 25 mm wide code tape Distance: 80 mm, 100 mm, 130 mm, adjustable | |
| Mechanical specifications | ||
| Material | POM aluminum | |
| Installation position | In terms of mounting, the marker head corresponds to all PCV...-F200-... readers The marker heads require 4 M6 screws for mounting. | |
| Mass | 450 g | |
| General information | ||
| Scope of delivery | Marker pens: includes 2 x edding® 3000 permanent markers Replacement pens available through specialist trade | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
