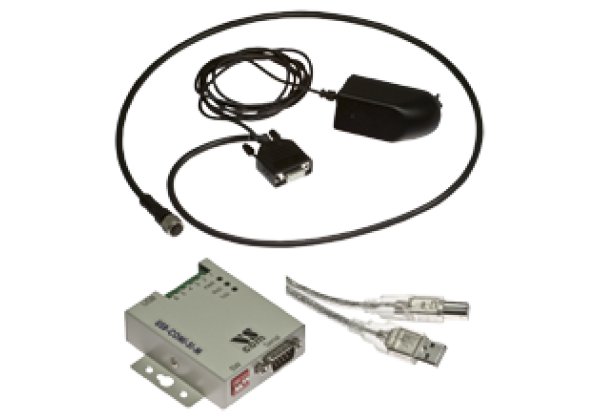

Interface converter PCV-USB-RS485-Converter Set
Brand: Pepperl+Fuchs
Code: PCV-USB-RS485-Converter Set
USB to RS 485 interface converter, Extension cable 0.8 m in scope of delivery, Power supply for 95 - 230 V AC, For RS485
Datasheet excerpt: Technical data of PCV-USB-RS485-Converter Set
| Product Description |
|---|
| USB to RS 485 interface converter |
| Indicators/operating means | ||
|---|---|---|
| Operation indicator | LED red | |
| Data flow indicator | LED yellow and LED green | |
| Electrical specifications | ||
| Operating voltage | via USB | |
| Interface 1 | ||
| Connection of | PC | |
| Interface type | USB | |
| Interface 2 | ||
| Connection of | Read head | |
| Interface type | RS-422 / RS-485 | |
| Transfer rate | up to 921.6 kBit/s | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Mechanical specifications | ||
| Connection type | Screw terminals for 0.14... 0.34 mm2 9-pin Sub-D connector USB-Male Connector Typ B | |
| Dimensions | 70 mm x 67 mm x 22 mm | |
| General information | ||
| Scope of delivery | USB connection cable 800 mm 24 V power supply and V19 cordset USB/RS-485 converter | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060390 |
| ECLASS 12.0 | 27060390 |
| ECLASS 11.0 | 27060390 |
| ECLASS 10.0.1 | 27060390 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC000310 |
| ETIM 8.0 | EC000310 |
| ETIM 7.0 | EC000310 |
| ETIM 6.0 | EC000310 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
