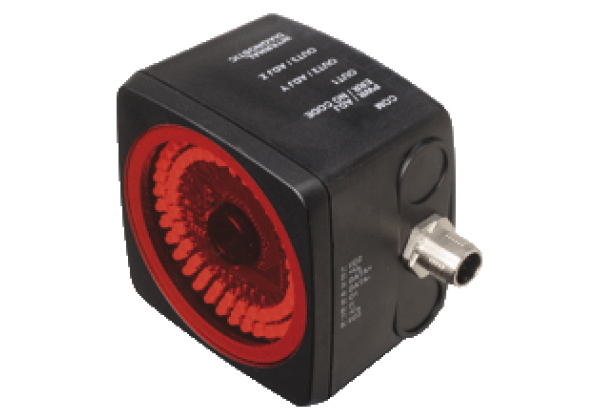

Optical reading head PCV80I-F200-R4-V19
Brand: Pepperl+Fuchs
Code: PCV80I-F200-R4-V19
Read head for incident light positioning system, RS-485 interface, Non-contact positioning on Data Matrix code tape, Travel ranges up to 10 km, in X and Y direction, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Infrared light
Datasheet excerpt: Technical data of PCV80I-F200-R4-V19
| Product Description |
|---|
| Read head for incident light positioning system |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 12.5 m/s | |
| Measuring range | max. 10000 m | |
| Light type | Integrated LED lightning , infrared | |
| Read distance | 80 mm | |
| Depth of focus | ± 15 mm | |
| Reading field | 40 mm x 25 mm | |
| Ambient light limit | 100000 Lux | |
| Resolution | ± 0.1 mm | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS , Global shutter | |
| Processor | ||
| Clock pulse frequency | 600 MHz | |
| Speed of computation | 4800 MIPS | |
| Functional safety related parameters | ||
| MTTFd | 94 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indication | 7 LEDs (communication, alignment aid, status information) | |
| Electrical specifications | ||
| Operating voltage | 15... 30 V DC , PELV | |
| No-load supply current | max. 200 mA | |
| Power consumption | 3 W | |
| Interface | ||
| Interface type | RS 485 interface | |
| Data output code | binary code | |
| Transfer rate | 38400... 230400 Bit/s | |
| Termination | Switchable terminal resistor | |
| Query cycle time | ≥ 10 ms | |
| Input | ||
| Input type | 1 to 3 functional inputs , programmable | |
| Output | ||
| Output type | 1 to 3 switch outputs , PNP , programmable , short-circuit protected | |
| Switching voltage | Operating voltage | |
| Switching current | 150 mA each output | |
| Standard conformity | ||
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | EN 60068-2-27:2009 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | 0... 60 °C (32... 140 °F) , -20... 60 °C (-4... 140 °F) (noncondensing; prevent icing on the lens!) | |
| Storage temperature | -20... 85 °C (-4... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Connection type | 8-pin, M12 x 1 connector | |
| Housing width | 70 mm | |
| Housing height | 70 mm | |
| Housing depth | 50 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PC/ABS | |
| Mass | approx. 160 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270918 |
| ECLASS 12.0 | 27270918 |
| ECLASS 11.0 | 27270701 |
| ECLASS 10.0.1 | 27270701 |
| ECLASS 9.0 | 27270701 |
| ECLASS 8.0 | 27270701 |
| ECLASS 5.1 | 27270701 |
| ETIM 9.0 | EC004672 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
