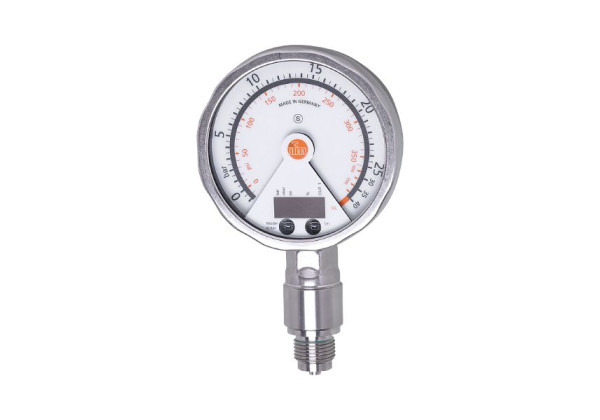

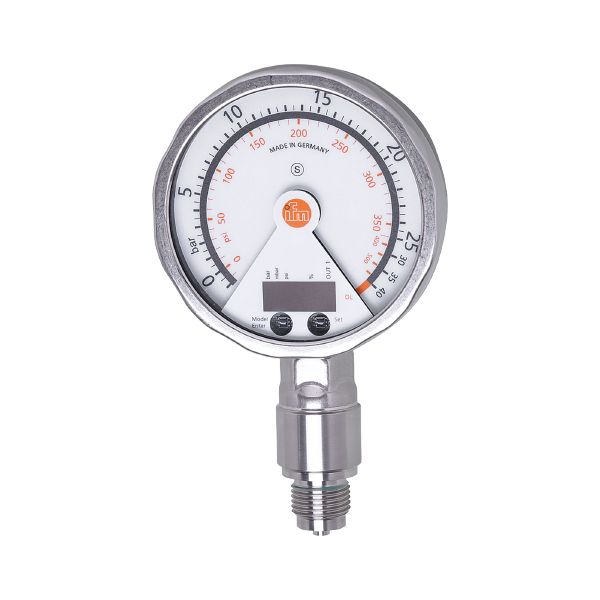

PG2453 - efector500-PG-025-REB12-MFRKG/US/ /P
Brand: IFM Electronic
Code: PG2453
- Analogue display, pressure switch and transmitter in one unit
- Excellent readability also over a long distance
- Rotatable display with LED bar graph for switch point indication
- Programmable switching output and scalable analogue output
- Robust stainless steel housing for use in harsh industrial environments
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 | ||
|---|---|---|---|
| Measuring range |
| ||
| Process connection | threaded connection G 1/2 external thread |
Application
| Special feature | Gold-plated contacts | ||
|---|---|---|---|
| Application | for industrial applications | ||
| Media | liquids and gases | ||
| Medium temperature [°C] | -25...80 | ||
| Min. bursting pressure |
| ||
| Pressure rating |
| ||
| Type of pressure | relative pressure; vacuum |
Electrical data
| Operating voltage [V] | 18...32 DC |
|---|---|
| Current consumption [mA] | < 70; (24 V) |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 6 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 75 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20, invertible; (scalable) |
| Max. load [Ω] | (Ub - 10 V) / 20 mA |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
| ||
|---|---|---|---|
| Set point SP |
| ||
| Reset point rP |
| ||
| Analogue start point |
| ||
| Analogue end point |
| ||
| In steps of |
|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,5; (Turn down 1:1) |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line) |
| Hysteresis deviation [% of the span] | < ± 0,25; (Turn down 1:1) |
| Long-term stability [% of the span] | < ± 0,1; (Turn down 1:1; per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (0...70 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,2; (0...70 °C) |
Response times
| Response time [ms] | < 9 |
|---|---|
| Damping process value dAP [s] | 0.01...30 |
| Damping for the analogue output dAA [s] | 0.01...30 |
| Step response time analogue output [ms] | 28 |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||||
| Vibration resistance |
| ||||||||||
| MTTF [years] | 103 | ||||||||||
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 563.9 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm |
| Materials (wetted parts) | Al2O3 (ceramics); FKM; stainless steel (1.4404 / 316L) |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/2 external thread |
| Restrictor element integrated | no (can be retrofitted) |
Displays / operating elements
| Display |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| With scale | yes | ||||||||||||
| Extended display range (max.) |
|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
