PG2794 - efector500-PG-010-REA01-MFRKG/US/ /P

Brand: IFM Electronic

Code: PG2794

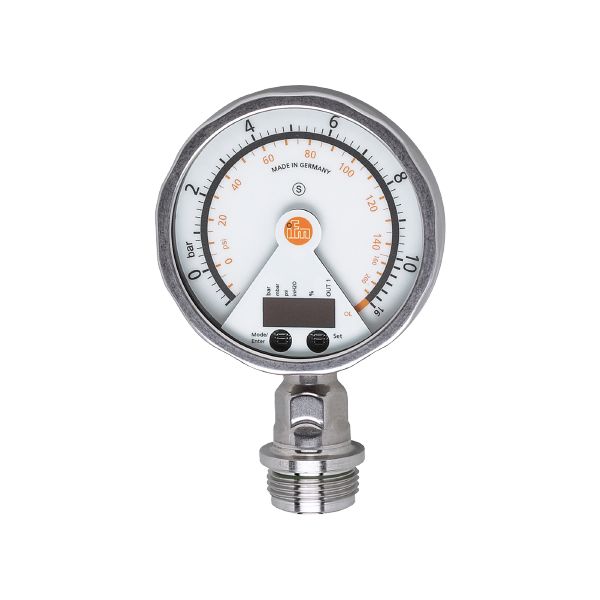

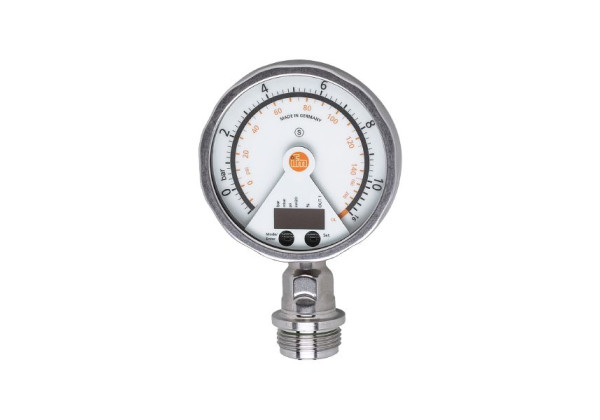

Analogue display, pressure switch and transmitter in one unit
Excellent readability also over a long distance
Rotatable display with LED bar graph for switch point indication
Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
Flush process connection for use in CIP and SIP processes

Product characteristics

Number of inputs and outputs

Number of digital outputs: 1; Number of analogue outputs: 1

Measuring range

-1...10 bar

-14.5...145 psi

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Special feature

Gold-plated contacts

Application

flush mountable for the food and beverage industry

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (145 max. 1h)

Min. bursting pressure

150 bar

2175 psi

Pressure rating

50 bar

725 psi

Type of pressure

relative pressure; vacuum

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 70; (24 V)
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	6
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	1
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	50
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable)
Max. load [Ω]	(Ub - 10 V) / 20 mA
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

-1...10 bar

-14.5...145 psi

Set point SP

-0.98...16 bar

-14.2...232 psi

Reset point rP

-1...15.98 bar

-14.5...231.8 psi

Analogue start point

-1...13.5 bar

-14.5...195.7 psi

Analogue end point [bar]

1.5...16

In steps of

0.01 bar

0.1 psi

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,2; (Turn down 1:1)
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,05; (0...70 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,15; (0...70 °C)

Response times

Response time [ms]	< 10
Damping process value dAP [s]	0.01...30
Damping for the analogue output dAA [s]	0.01...30
Step response time analogue output [ms]	25

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5/1 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

20 g (10...2000 Hz)

MTTF [years]

100

Note on approval

factory certificate available as download at www.factory-certificate.ifm

Mechanical data

Weight [g]	520.1
Materials	stainless steel (1.4404 / 316L); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Process connection	threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display

Display unit	2 x LED, green
switching status	LED, yellow
switch points	LED ring, red
function display	alphanumeric display, red 4-digit
measured values	analogue display, 0...350° rotatable, pointer not visible when unit disconnected
measured values	alphanumeric display, red 4-digit

With scale

yes

Extended display range (max.)

16 bar

232 psi

Remarks

characteristics deviation in the extended display range: 1.5 % of the span

switch point accuracy in the extended display range: 1.5 % of the span

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PG2794-00 — 13.04.2023 —
