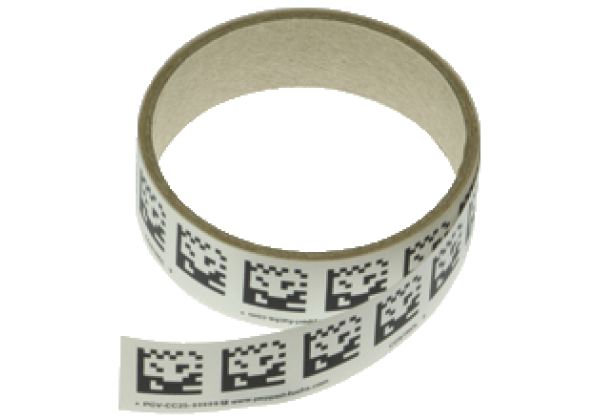

Code tape PGV*-CA25-*
Brand: Pepperl+Fuchs
Code: PGV*-CA25-*
Data Matrix code tape, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability
Datasheet excerpt: Technical data of PGV*-CA25-*
| Product Description |
|---|
| Data Matrix code tape |
| General specifications | ||
|---|---|---|
| Start position | 0... 9999 m (see Order Information) | |
| Length | 1... 10000 m (see Order Information) | |
| Width | 25 mm (1 row version) | |
| External diameter | max. 180 mm (with max. code tape length of 100 m) | |
| Inside diameter | 76 mm ( role core ) | |
| Ambient conditions | ||
| Operating temperature | -40... 100 °C (-40... 212 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 150 µm | |
| Material | polyester laminate | |
| Surface | polyester , matte | |
| Mass | 6.3 g / m | |
| Tensile strength | ≥ 150 N | |
| Manufacturing tolerance | ± 1 mm/m | |
| Adhesive | Acrylate-based adhesive ; curing 72 h | |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm | |
| Note | Max. code tape length of 100 m per roll | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310291 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
