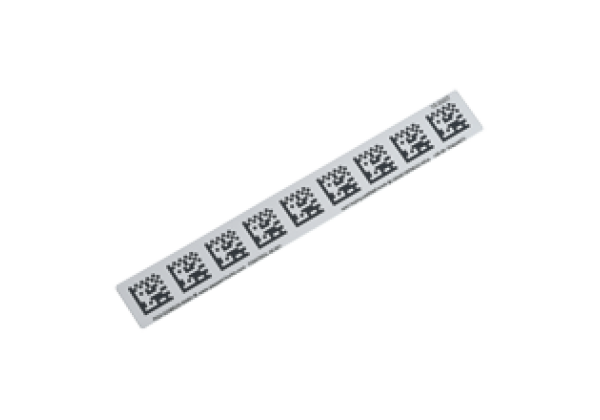

Metal control code bar PGV-CCM
Brand: Pepperl+Fuchs
Code: PGV-CCM
Metal control code bar for PGV System, High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resistant
Datasheet excerpt: Technical data of PGV-CCM
| Product Description |
|---|
| Metal control code bar for PGV System |
| General specifications | ||
|---|---|---|
| Start value | 1... 999 | |
| Number | 1... 999 | |
| Code bar segment | ||
| Nominal segment length | 100 mm 200 mm 500 mm | |
| Width | 25 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 80 °C (-40... 176 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Environmental resistance | UV radiation Humidity | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 1 mm | |
| Material | Aluminum | |
| Mounting type | adhesive screwing | |
| Mass | 83 g / m | |
| Manufacturing tolerance | ± 1 mm/m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310291 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
