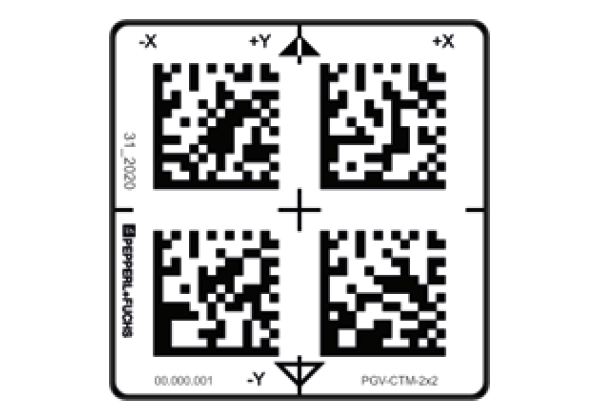

Metal Data Matrix tag PGV-CTM2x2
Brand: Pepperl+Fuchs
Code: PGV-CTM2x2
Metal Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Robust and insensitive to ambient interference
Datasheet excerpt: Technical data of PGV-CTM2x2
| Product Description |
|---|
| Metal Data Matrix tag for PGV system |
| General specifications | ||
|---|---|---|
| Number interval | 1... 99999999 = TAG number (see Order Information) | |
| Light type | red blue/white Not suitable for infrared light color! | |
| Ambient conditions | ||
| Operating temperature | -40... 80 °C (-40... 176 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Environmental resistance | UV radiation Humidity | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 0.5 mm | |
| Material | Aluminum | |
| Mass | 3 g | |
| Manufacturing tolerance | ||
| Adhesive | Acrylate-based adhesive ; curing 72 h | |
| Adhesive strength | Average values (FTM2) Metal (stainless steel, aluminum) : 33 N / 25 mm ABS : 32 N / 25 mm PP : 31 N / 25 mm | |
| Note | To achieve a good bonding bond, the material surfaces to be bonded must be absolutely dry and clean. For cleaning, fat-free solvents such as n-heptane or isopropyl alcohol are recommended. During bonding, the pressure should be as high as possible and the temperature should be at least +10°C. The higher the pressure and temperature, the better the adhesive penetrates the pores of the substrate and the higher the bonding values can be expected. | |
| General information | ||
| Ordering information | The required tag numbers are entered in the additional text for the job in the form of the start and end position. The order quantity must match the specified range. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
