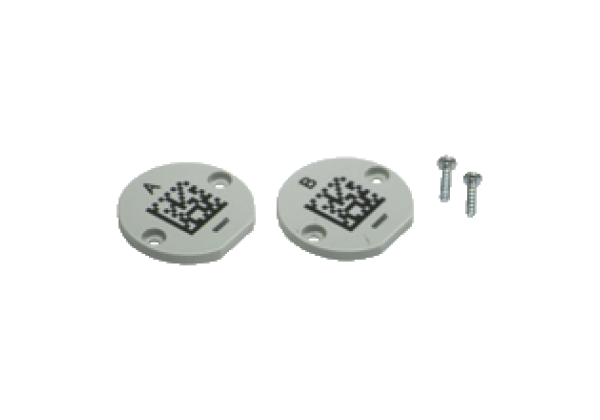

Data matrix tag PGV-DMC-CP
Brand: Pepperl+Fuchs
Code: PGV-DMC-CP
Data Matrix control code for PGV system, High chemical resistance, Low weight, High temperature resistance, Screw mounting for simple installation, Abrasion-resistant laser inscription
Datasheet excerpt: Technical data of PGV-DMC-CP
| Product Description |
|---|
| Data Matrix control code for PGV system |
| General specifications | ||
|---|---|---|
| Number interval | 1... 99999 = Control code number (see Order Information) | |
| Ambient conditions | ||
| Operating temperature | -30... 85 °C (-22... 185 °F) | |
| Storage temperature | -30... 85 °C (-22... 185 °F) | |
| Environmental resistance | UV radiation Humidity | |
| Chemical resistance | Oils Grease Fuels Weak acids | |
| Mechanical specifications | ||
| Material | PC/ABS , Zinc plated steel | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
