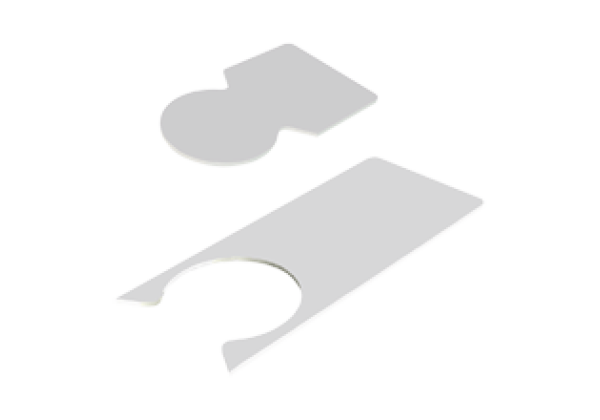

Opening segment and closing segment (kit) PGV-MG30-START-END-SET
Brand: Pepperl+Fuchs
Code: PGV-MG30-START-END-SET
High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resistant
Datasheet excerpt: Technical data of PGV-MG30-START-END-SET
| General specifications | ||
|---|---|---|
| Length | Opening segment: 50 mm Closing segment: 71 mm | |
| Width | 30 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 80 °C (-40... 176 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Environmental resistance | UV radiation Humidity | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 1 mm | |
| Material | Aluminum | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
