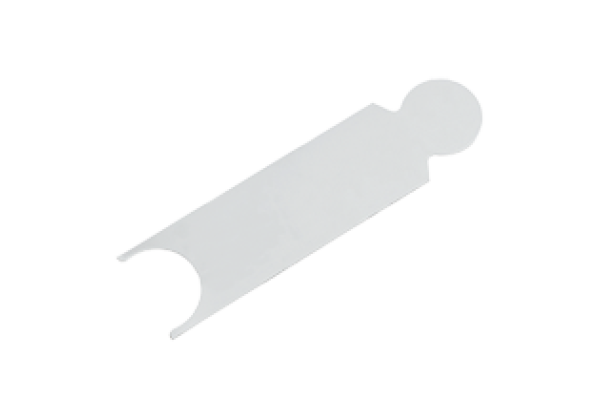

Protective mounting bar PGV-PR-PROTECT100
Brand: Pepperl+Fuchs
Code: PGV-PR-PROTECT100
Mounting protection strips for protecting the countersunk profile rails (100 mm) during installation in the floor. , Mounting aid, Easily interchangeable
Datasheet excerpt: Technical data of PGV-PR-PROTECT100
| Product Description |
|---|
| Mounting protection strips for protecting the countersunk profile rails (100 mm) during installation in the floor. |
| General specifications | ||
|---|---|---|
| Code bar segment | ||
| Nominal segment length | 100 mm | |
| Width | 30 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 90 °C (-40... 194 °F) | |
| Installation temperature | -40... 90 °C (-40... 194 °F) | |
| Environmental resistance | UV radiation Humidity | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 1 mm | |
| Material | PVC | |
| Mounting type | adhesive | |
| Adhesive | Acrylate-based adhesive | |
| Adhesive strength | 4 N / 25 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
