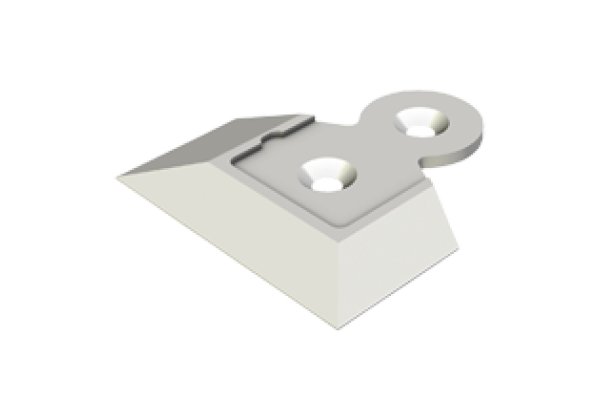

Drive-over profile rail PGV-PR-SM-START
Brand: Pepperl+Fuchs
Code: PGV-PR-SM-START
Drive-over rail for starting continuous tracks, Sturdy construction
Datasheet excerpt: Technical data of PGV-PR-SM-START
| Product Description |
|---|
| Drive-over rail for starting continuous tracks |
| General specifications | ||
|---|---|---|
| Length | 65.1 mm | |
| Width | 60 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 80 °C (-40... 176 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Mechanical specifications | ||
| Material thickness | 4 mm | |
| Material | AlMg4.5Mn0.7 | |
| Surface | ELOX-E0EV1-15 | |
| Mass | 18 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
