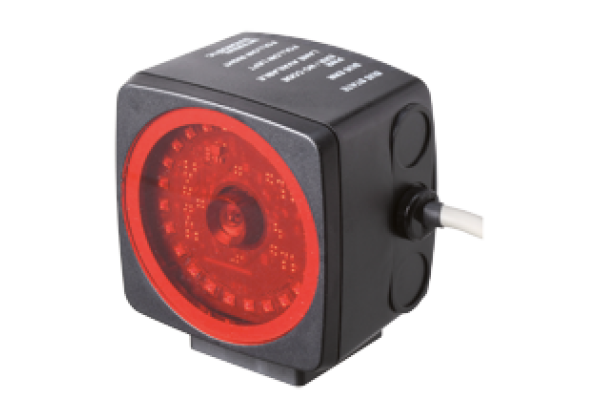

Optical reading head PGV100R-F200-B16-1,5M
Brand: Pepperl+Fuchs
Code: PGV100R-F200-B16-1,5M
Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, CANopen interface, Non-contact positioning on Data Matrix code tape, Noncontact positioning with Data Matrix TAGs, Reading of Data Matrix control codes, Visible red light, Fixed cable, Terminating resistor, switchable, Timestamp of the image capture
Datasheet excerpt: Technical data of PGV100R-F200-B16-1,5M
| Product Description |
|---|
| Read head for incident light positioning system |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 8 m/s | |
| Measuring range | max. 10000 m | |
| Light type | Integrated LED lightning (red) | |
| Scan rate | 40 s-1 | |
| Latency | 50 ms | |
| Read distance | 100 mm | |
| Depth of focus | ± 30 mm | |
| Reading field | 120 mm x 80 mm | |
| Resolution | 0.1 mm | |
| Ambient light limit | 100000 Lux | |
| Accuracy | ± 0.2 mm | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS , Global shutter | |
| Processor | ||
| Clock pulse frequency | 600 MHz | |
| Speed of computation | 4800 MIPS | |
| Functional safety related parameters | ||
| MTTF | 71 a | |
| MTTFd | 142 a | |
| MTBF | 71 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indication | 2 LEDs | |
| Electrical specifications | ||
| Operating voltage | 15... 30 V DC , PELV | |
| No-load supply current | max. 200 mA | |
| Power consumption | 3 W | |
| Interface | ||
| Interface type | CANopen , Switchable terminal resistor | |
| Data output code | binary code | |
| Transfer rate | max. 1 MBit/s | |
| Termination | Switchable terminal resistor | |
| Dielectric strength | ± 16 V | |
| Standard conformity | ||
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005+AC:2005 | |
| Shock resistance | EN 60068-2-27:2009 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | 0... 60 °C (32... 140 °F) , -20... 60 °C (-4... 140 °F) (noncondensing; prevent icing on the lens!) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Connection type | Open cable end | |
| Housing width | 70 mm | |
| Housing height | 70 mm | |
| Housing depth | 50 mm | |
| Degree of protection | IP40 | |
| Material | ||
| Housing | PC/ABS | |
| Cable | PVC | |
| Cable | ||
| Sheath diameter | 5.8 mm | |
| Strain relief | 60 N | |
| Length | 1.5 m | |
| Mass | approx. 200 g | |
| Factory settings | ||
| X resolution (protocol) | 0.1 mm | |
| Y resolution (protocol) | 0.1 mm | |
| Angle resolution | 0.1 ° | |
| Baud rate | 500 kBit/s | |
| Terminating resistor | On | |
| Read head address | 8 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270918 |
| ECLASS 12.0 | 27310101 |
| ECLASS 11.0 | 27310101 |
| ECLASS 10.0.1 | 27310101 |
| ECLASS 9.0 | 27310101 |
| ECLASS 8.0 | 27310101 |
| ECLASS 5.1 | 27310101 |
| ETIM 9.0 | EC004672 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
