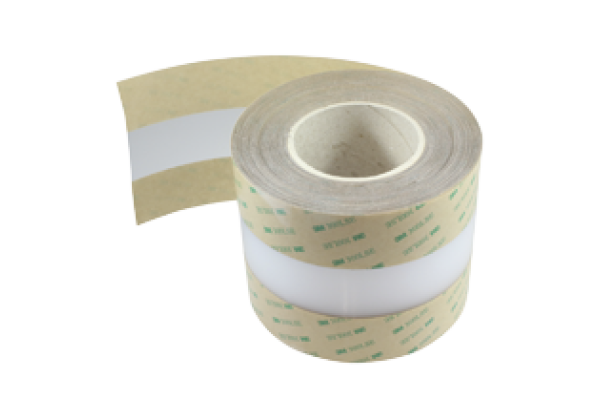

Protective laminate PGV25M-CD120-CLEAR
Brand: Pepperl+Fuchs
Code: PGV25M-CD120-CLEAR
Protective laminate for PGV code tape, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability, Removable without residue, Easily interchangeable
Datasheet excerpt: Technical data of PGV25M-CD120-CLEAR
| Product Description |
|---|
| Protective laminate for PGV code tape |
| General specifications | ||
|---|---|---|
| Length | 25 m | |
| Width | 120 mm | |
| Inside diameter | 75 mm ( role core ) | |
| Ambient conditions | ||
| Operating temperature | -40... 95 °C (-40... 203 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 250 µm | |
| Surface | polyester , matte | |
| Mass | 1.5 kg | |
| Tensile strength | ≥ 120 N | |
| Adhesive | Acrylate-based adhesive ; curing 72 h | |
| Adhesive strength | Average values (FTM1) Steel : 33 N / 25 mm PP : 31 N / 25 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
