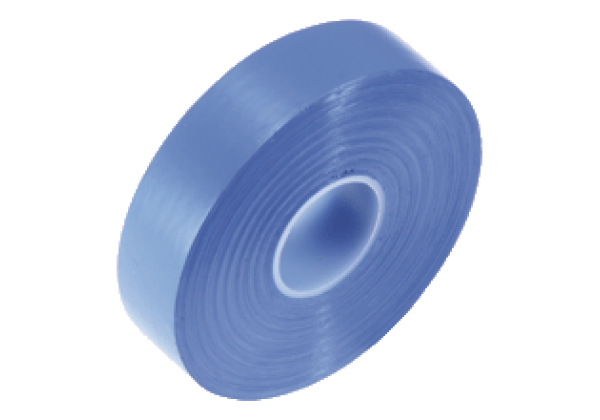

Color-tape PGV33M-CB19-BU
Brand: Pepperl+Fuchs
Code: PGV33M-CB19-BU
PGV color-tape blue, Self-adhesive mounting, High mechanical stability
Datasheet excerpt: Technical data of PGV33M-CB19-BU
| Product Description |
|---|
| PGV color-tape blue |
| General specifications | ||
|---|---|---|
| Length | 33 m | |
| Width | 19 mm | |
| External diameter | 80 mm | |
| Inside diameter | 25 mm ( role core ) | |
| Color | blue | |
| Ambient conditions | ||
| Operating temperature | -5... 70 °C (23... 158 °F) | |
| Storage temperature | 12... 25 °C (53.6... 77 °F) | |
| Installation temperature | 0... 40 °C (32... 104 °F) | |
| Environmental resistance | UV radiation Humidity | |
| Mechanical specifications | ||
| Material thickness | 130 µm | |
| Material | PVC | |
| Thermal expansion coefficient | 180 % | |
| Tensile strength | 28 N/cm | |
| Adhesive strength | Average values (FTM2) Steel : 2.4 N / 10 mm Self : 2.1 N / 25 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310291 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
