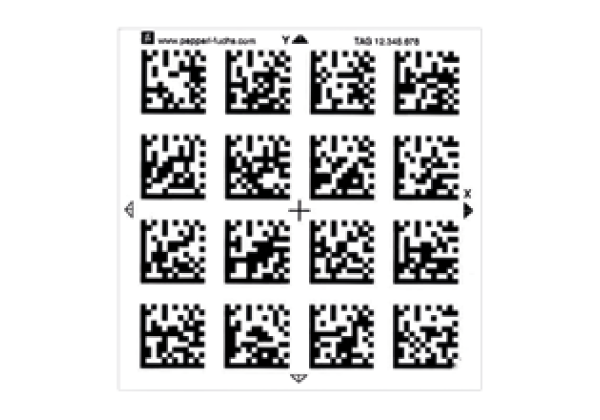

Data Matrix tag PGV85-CT4
Brand: Pepperl+Fuchs
Code: PGV85-CT4
Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance
Datasheet excerpt: Technical data of PGV85-CT4
| Product Description |
|---|
| Data Matrix tag for PGV system |
| General specifications | ||
|---|---|---|
| Number interval | 1... 99999999 = TAG number (see Order Information) | |
| Length | 87 mm | |
| Width | 87 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 100 °C (-40... 212 °F) | |
| Installation temperature | 10... 40 °C (50... 104 °F) | |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) | |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids | |
| Mechanical specifications | ||
| Material thickness | 100 µm | |
| Material | polyester | |
| Surface | polyester , glossy | |
| Tensile strength | ≥ 50 N | |
| Adhesive | Acrylate-based adhesive ; curing 72 h | |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm | |
| Note | To improve readability and protect the Data Matrix tag from mechanical damage, the protective film PGV25M-CD160-CLEAR must be adhered over the Data Matrix tag. | |
| General information | ||
| Ordering information | The required tag numbers are entered in the additional text for the job in the form of the start and end position. The order quantity must match the specified range. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
