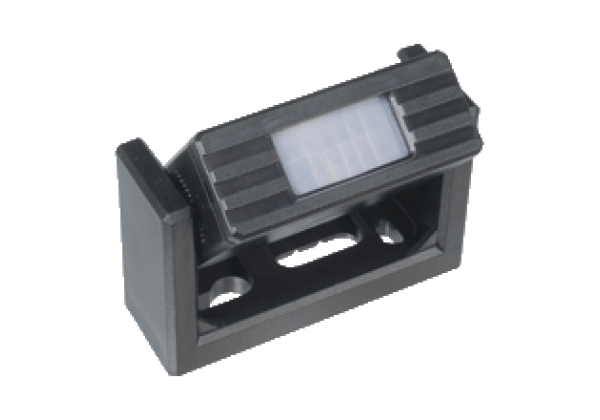

Passive infrared motion sensor PIR20/31 sw
Brand: Pepperl+Fuchs
Code: PIR20/31 sw
Door activation sensor, One of the smallest sensors for person detection, Reliable detection through change in the thermal image from +/- 0.5 °C, Accurate and seamless field adjustment through aperture and zoom function, Function only in case of movement, Function: Open and secure, Sensor principle: Passive infrared scanner
Datasheet excerpt: Technical data of PIR20/31 sw
| Product Description |
|---|
| Presence detector using infrared heat radiation for detecting people, detection range 1.8 m x 2.6 m, max. installation height 5 m, black housing, relay contact output, screw terminals |
| General specifications | ||
|---|---|---|
| Effective detection range | max. 12 m (frontal) | |
| Detection field | max. 1800 mm x 2600 mm for a mounting height of 2500 mm | |
| Functional safety related parameters | ||
| MTTFd | Relay load 12 V/10 mA: 500 a* Relay load 24 V/10 mA: 350 a* Relay load 6 V/100 mA: 100 a* Relay load 30 V/1 A: 0.1 a* *For 200,000 switching cycles/year in each case | |
| Indicators/operating means | ||
| Function indicator | LED red: illuminates upon detection | |
| Control elements | Zoom screw for adjusting the detection field , sensitivity adjustment , changeover switch, active/passive | |
| Electrical specifications | ||
| Operating voltage | 12... 24 V AC / 12... 30 V DC | |
| Output | ||
| Switching type | Output active/passive, programmable | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP52 | |
| Connection | screw terminals, removable | |
| Material | ||
| Housing | black ABS | |
| Optical face | plastic lens | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 10.0.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
