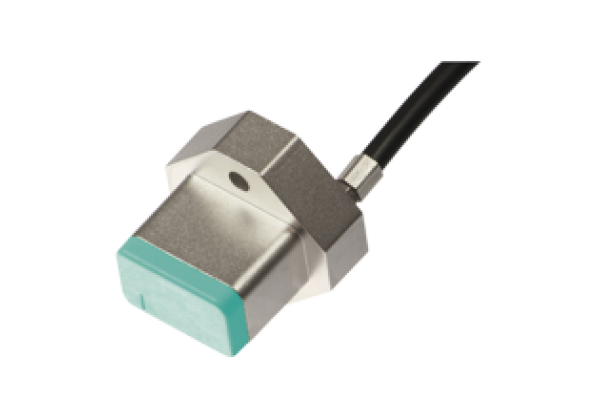

Inductive positioning system PMI14V-F112-U-IO
Brand: Pepperl+Fuchs
Code: PMI14V-F112-U-IO
Parameterization and diagnosis via IO-Link, Analog output 0 ... 10 V, Measuring range 0 ... 14 mm, Shielded line 2 m, Switching element function: Analog voltage output, Output polarity: DC, Operating voltage: 18... 30 V DC, Type of voltage: DC, Interface type: IO-Link, Output type: voltage output 0... 10 V, UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure, CCC approval: CCC approval / marking not required for products rated ≤36 V
Datasheet excerpt: Technical data of PMI14V-F112-U-IO
| General specifications | ||
|---|---|---|
| Switching element function | Analog voltage output | |
| Installation | flush | |
| Object distance | max. 2.5 mm | |
| Measurement range | 0... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.5 mm | |
| No-load supply current | ≤ 20 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 490 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Interface | ||
| Interface type | IO-Link | |
| Mode | COM2 (38.4 kBit/s) | |
| Value range | 0000h... 7000h | |
| Analog output | ||
| Output type | voltage output 0... 10 V | |
| Load resistor | ≥ 2000 Ω | |
| Short-circuit protection | limited to 6 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 2 m PUR cable , screened | |
| Housing material | diecast zinc, not laquered or coated | |
| Degree of protection | IP67 | |
| Material | ||
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Cable | ||
| Cable diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter | |
| Note | The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 2.5 mm. | |
