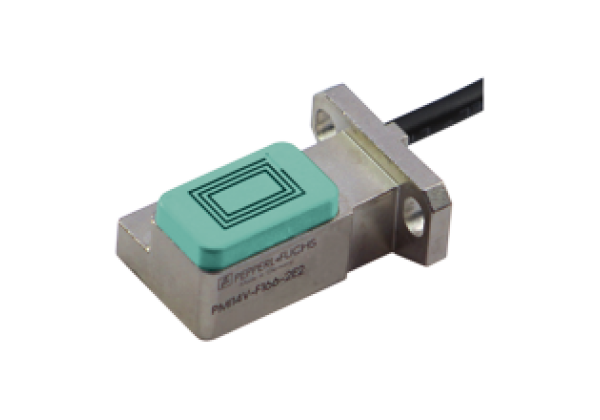

Inductive positioning system PMI14V-F166-2E2
Brand: Pepperl+Fuchs
Code: PMI14V-F166-2E2
Measuring range 0 ... 14 mm, 2 programmable switch outputs, Switching element function: PNP
cover , PBT
Datasheet excerpt: Technical data of PMI14V-F166-2E2
| General specifications | ||
|---|---|---|
| Switching element function | PNP | |
| Object distance | 0.5... 2 mm | |
| Measurement range | 0... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Voltage drop | ≤ 3 V | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.3 mm (With a target distance of 0.5 mm) | |
| No-load supply current | ≤ 20 mA | |
| Functional safety related parameters | ||
| MTTFd | 880 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Switching output | ||
| Output type | PNP (2 Channels) | |
| Operating current | per channel 50 mA , Combined max. 80 mA | |
| Switching window | position programmable, width 2 mm | |
| Switching hysteresis | 0.4 mm | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| Ambient conditions | ||
| Ambient temperature | -10... 70 °C (14... 158 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 5 x 0.14 mm2 , screened 2 m PUR cable | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | Zinc diecast, nickel-plated cover , PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Cable | ||
| Cable diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter | |
| Mass | 95 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274004 |
| ECLASS 12.0 | 27274004 |
| ECLASS 11.0 | 27270702 |
| ECLASS 10.0.1 | 27270702 |
| ECLASS 9.0 | 27270702 |
| ECLASS 8.0 | 27270702 |
| ECLASS 5.1 | 27270702 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 39121550 |
