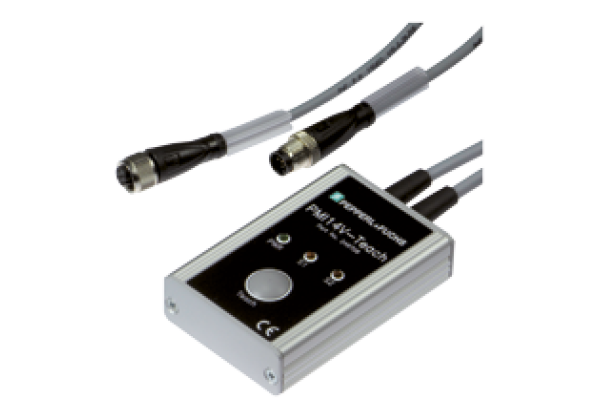

Programming unit PMI14V-Teach
Brand: Pepperl+Fuchs
Code: PMI14V-Teach
Programming unit, Programming unit for PMI14V "F166 family", Connection type: cable with V15 connector (power supply)
cable with V15 socket (sensor), Degree of protection: IP20
Datasheet excerpt: Technical data of PMI14V-Teach
| Product Description |
|---|
| Programming unit |
| Nominal ratings | ||
|---|---|---|
| Operating voltage | 18... 30 V | |
| Reverse polarity protection | yes | |
| Ambient conditions | ||
| Ambient temperature | 10... 40 °C (50... 104 °F) | |
| Mechanical specifications | ||
| Connection type | cable with V15 connector (power supply) cable with V15 socket (sensor) | |
| Degree of protection | IP20 | |
| Note | The procedure of the teach-in process can be found in the description of the respective sensor. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 19200504 |
| ECLASS 12.0 | 19200504 |
| ECLASS 11.0 | 19200504 |
| ECLASS 10.0.1 | 19200504 |
| ECLASS 9.0 | 19200504 |
| ECLASS 8.0 | 27279211 |
| ECLASS 5.1 | 27279211 |
| ETIM 9.0 | EC001418 |
| ETIM 8.0 | EC001418 |
| ETIM 7.0 | EC001418 |
| ETIM 6.0 | EC001418 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 41113650 |
