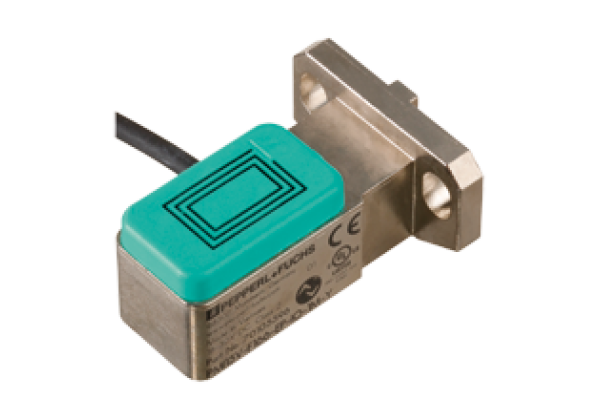

Inductive positioning system PMI15V-F166-EP-IO-1M-Y70105596
Brand: Pepperl+Fuchs
Code: PMI15V-F166-EP-IO-1M-Y70105596
IO-Link interface for service and process data, Measuring range 0 ... 15 mm, Switching element function: Push-pull (4 in 1) output, Output polarity: DC, Operating voltage: 18... 30 V DC, Type of voltage: DC, Interface type: IO-Link (via C/Q = Pin 4), Output type: 1 Push-pull (4 in 1) output , short-circuit protected , reverse polarity protected , overvoltage protected , programmable, UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure, Connection type: cable
Datasheet excerpt: Technical data of PMI15V-F166-EP-IO-1M-Y70105596
| General specifications | ||
|---|---|---|
| Switching element function | Push-pull (4 in 1) output | |
| Object distance | 0.5... 2 mm | |
| Measurement range | 0... 15 mm | |
| Nominal ratings | ||
| Operating voltage | 18... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm (for 1 mm object distance) | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 10 µm | |
| Temperature drift | ± 0.4 mm in the range 0.5 mm... 14.5 mm (for 1 mm object distance) | |
| No-load supply current | ≤ 20 mA | |
| Functional safety related parameters | ||
| MTTFd | 830 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Interface | ||
| Interface type | IO-Link (via C/Q = Pin 4) | |
| IO-Link revision | 1.1 | |
| Device profile | Identification and Diagnosis - I&D Smart Sensor - SSP 0 Smart Sensor - SSP 3.1 | |
| Process data | Input 4 byte - Measurement value 16 bit - Scale 8 bit - Signal quality indicator 2 bit - Switching signal 1 1 bit - Switching signal 2 1 bit | |
| Vendor ID | 1 (0x0001) | |
| Device ID | 2098433 (0x200501) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 3 ms | |
| SIO mode support | yes | |
| Compatible master port type | Class A Class B | |
| Switching output | ||
| Output type | 1 Push-pull (4 in 1) output , short-circuit protected , reverse polarity protected , overvoltage protected , programmable | |
| Operating current | ≤ 100 mA / Output | |
| Switching hysteresis | 3-step, adjustable 0.4... 1 mm | |
| Voltage drop | ≤ 3 V | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 EN 60947-5-7:2003 | |
| Communication interface | IEC 61131-9 / IO-Link V1.1.3 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| Ambient conditions | ||
| Ambient temperature | -25... 80 °C (-13... 176 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | Zinc diecast, nickel-plated cover , PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Cable | ||
| Cable diameter | 3 mm - 0.2 mm | |
| Bending radius | > 12 x cable diameter | |
| Material | PUR | |
| Number of cores | 3 | |
| Core cross section | 0.14 mm2 | |
| Length | 1 m | |
| Mass | 95 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274004 |
| ECLASS 12.0 | 27274004 |
| ECLASS 11.0 | 27270702 |
| ECLASS 10.0.1 | 27270702 |
| ECLASS 9.0 | 27270702 |
| ECLASS 8.0 | 27270702 |
| ECLASS 5.1 | 27270702 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 39121550 |
