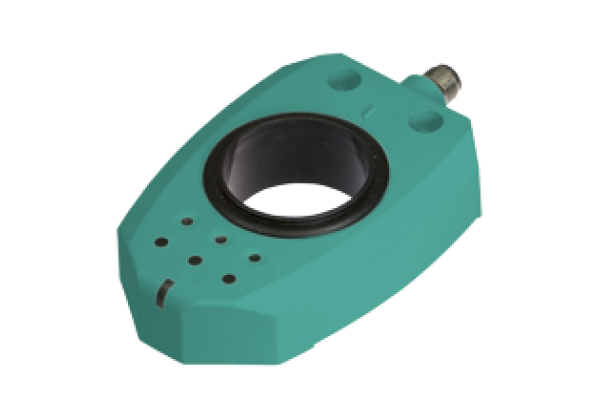

Ind. angular measuring system PMI360DV-F130-3E2-V15
Brand: Pepperl+Fuchs
Code: PMI360DV-F130-3E2-V15
3 configurable switching frames, Measurement range: max. 360°
min. 5°, Operating voltage: 18... 30 V DC, Output type: 3 switch outputs PNP, NO , reverse polarity protected , short-circuit protected , programmable, UL approval: cULus Listed, General Purpose, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: 5-pin, M12 x 1 connector, Degree of protection: IP67, Housing: PBT
Datasheet excerpt: Technical data of PMI360DV-F130-3E2-V15
| General specifications | ||
|---|---|---|
| Measurement range | max. 360° min. 5° | |
| Adjustment range | 3 switch frames programmable , min. 5°, max. 360° | |
| Rotational speed | max. 100 min-1 | |
| Nominal ratings | ||
| Operating voltage | 18... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Repeat accuracy | ± 0.25 ° | |
| Resolution | 0.2 ° | |
| Temperature drift | 0.02 ° / °C (-25 °C... 70 °C) | |
| No-load supply current | ≤ 45 mA | |
| Time delay before availability | 1 s | |
| Functional safety related parameters | ||
| MTTFd | 450 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED yellow 1 | switching state, Switching output 1 | |
| LED yellow 2 | switching state, Switching output 2 | |
| LED yellow 3 | switching state, Switching output 3 | |
| LED PWR/ERR | Status display LED, green/red (Power on / missing actuator / keylock) | |
| Switching output | ||
| Output type | 3 switch outputs PNP, NO , reverse polarity protected , short-circuit protected , programmable | |
| Operating current | ≤ 100 mA | |
| Switching hysteresis | 1 ° | |
| Voltage drop | ≤ 3 V | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 180 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274004 |
| ECLASS 12.0 | 27274004 |
| ECLASS 11.0 | 27270702 |
| ECLASS 10.0.1 | 27270702 |
| ECLASS 9.0 | 27270702 |
| ECLASS 8.0 | 27270702 |
| ECLASS 5.1 | 27270702 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 39121550 |
