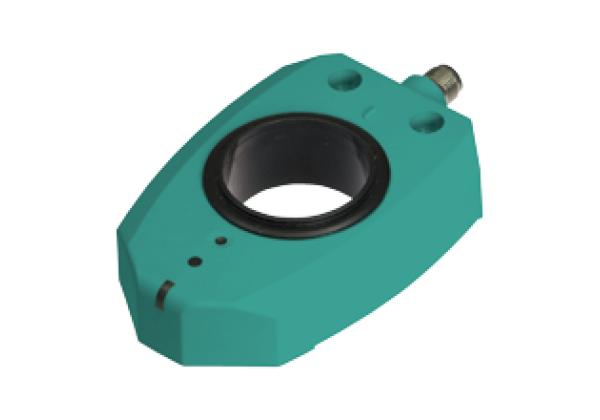

Ind. angular measuring system PMI360DV-F130-IU-V15
Brand: Pepperl+Fuchs
Code: PMI360DV-F130-IU-V15
Analog output, load-dependent voltage or current, Parameterisable measuring range, Measurement range: max. 360°
min. 45°, Operating voltage: 18... 30 V DC, Output type: current output or voltage output (load dependend)
4... 20 mA (RL < 400 Ω)
0... 10 V (RL > 3.3 kΩ), UL approval: cULus Listed, General Purpose, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: 5-pin, M12 x 1 connector
Datasheet excerpt: Technical data of PMI360DV-F130-IU-V15
| General specifications | ||
|---|---|---|
| Measurement range | max. 360° min. 45° | |
| Adjustment range | 360° | |
| Rotational speed | max. 100 min-1 | |
| Nominal ratings | ||
| Operating voltage | 18... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Repeat accuracy | ± 0.25 ° | |
| Resolution | 0.2 ° | |
| Temperature drift | 0.02 ° / °C (-25 °C... 70 °C) | |
| No-load supply current | ≤ 45 mA | |
| Functional safety related parameters | ||
| MTTFd | 450 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED PWR/ERR | LED green / red | |
| LED U/I | Activator within measuring range | |
| Analog output | ||
| Output type | current output or voltage output (load dependend) 4... 20 mA (RL < 400 Ω) 0... 10 V (RL > 3.3 kΩ) | |
| Linearity error | ± 0.6 ° , (with original actuator) | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 180 g | |
