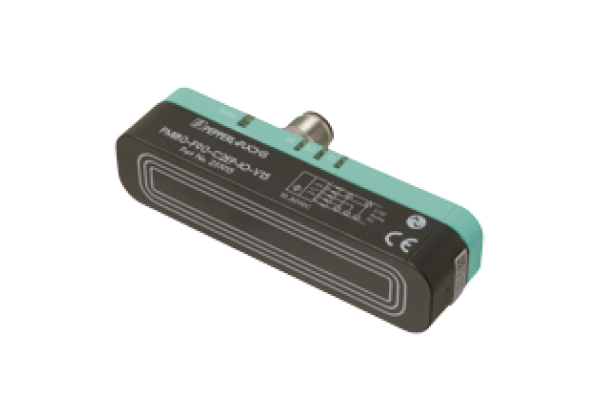

Inductive positioning system PMI80-F90-IU-IO-V15
Brand: Pepperl+Fuchs
Code: PMI80-F90-IU-IO-V15
Parameterization and diagnosis via IO-Link, Measuring range 0... 80 mm, Parameterisable measuring range, Analog current or voltage output, programmable, Switching element function: Analog current or voltage output, programmable, Output polarity: DC, Operating voltage: 12... 30 V DC
(13... 30 V when analog voltage output is parameterized), Type of voltage: DC, Interface type: IO-Link (via C/Q = Pin 4), Output type: current output 4-20 mA voltage output 0 - 5 V DC 0... 10 V DC , programmable
Datasheet excerpt: Technical data of PMI80-F90-IU-IO-V15
| General specifications | ||
|---|---|---|
| Switching element function | Analog current or voltage output, programmable | |
| Object distance | 0.5... 3 mm , recommended: 1.5 mm | |
| Measurement range | 0... 80 mm | |
| Linearity range | 1... 79 mm | |
| Nominal ratings | ||
| Operating voltage | 12... 30 V DC (13... 30 V when analog voltage output is parameterized) | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | within measuring range: ± 0.8 mm within linearity range: ± 0.4 mm | |
| Repeat accuracy | ± 0.1 mm | |
| Resolution | 50 µm | |
| Temperature drift | ± 0.5 mm (-25 °C... 70 °C) | |
| No-load supply current | ≤ 40 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 311 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED S3 | Damping element in the configured analog measuring range | |
| LED STATUS | Status display LED, green/red (Power on, communication/error, missing damping element) | |
| Interface | ||
| Interface type | IO-Link (via C/Q = Pin 4) | |
| IO-Link revision | 1.1 | |
| Device profile | Smart Sensor | |
| Device ID | 0x200301 (2097921) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Value range | 0000h... 6400h | |
| Min. cycle time | 2.3 ms | |
| Process data width | Process data input: 16 Bit Process data output: none | |
| SIO mode support | yes | |
| Compatible master port type | A | |
| Analog output | ||
| Output type | current output 4-20 mA voltage output 0 - 5 V DC 0... 10 V DC , programmable | |
| Load resistor | current output: ≤ 400 Ω voltage output: ≥ 1000 Ω | |
| Short-circuit protection | voltage output: current limit | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 EN 60947-5-7:2003 EN61131-9:2013 IEC 60947-5-7:2003 IEC 61131-9:2013 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| Marine approval | DNVGL TAA00001V2 | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Degree of protection | IP67 / IP69K | |
| Material | ||
| Housing | PBT, stainless steel 1.4571 , brass, nickel-plated | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 83 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274004 |
| ECLASS 12.0 | 27274004 |
| ECLASS 11.0 | 27270702 |
| ECLASS 10.0.1 | 27270702 |
| ECLASS 9.0 | 27270702 |
| ECLASS 8.0 | 27270702 |
| ECLASS 5.1 | 27270702 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 39121550 |
