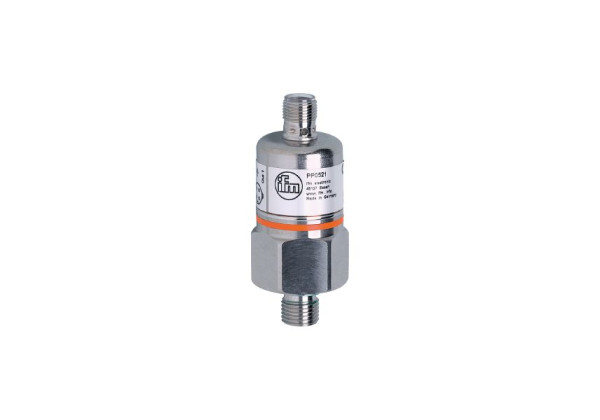

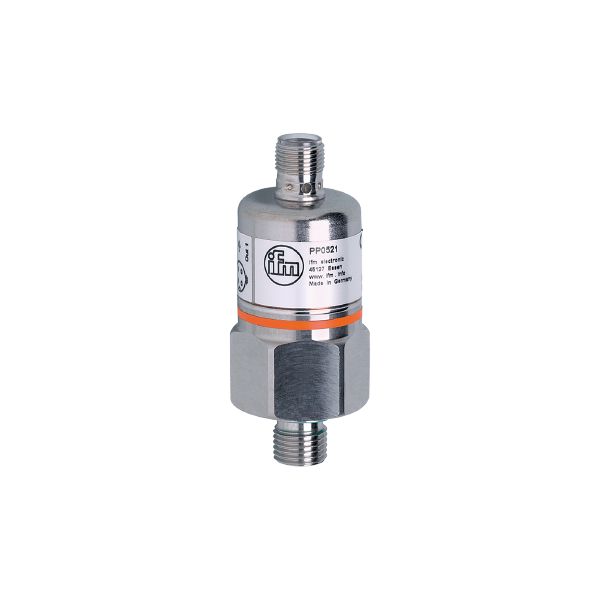

PP0524 - efector500-PP-010-RBG14-QFNKG/US/ /V

Brand: IFM Electronic

Code: PP0524

Robust design for use in harsh industrial environments
Two switching outputs, one of which can be configured as diagnostic output
High shock and vibration resistance
Lifespan of more than 100 million pressure cycles

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

-1...10 bar

-14.5...145 psi

-100...1000 kPa

-0.1...1 MPa

Process connection

threaded connection G 1/4 external thread internal thread:M5

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...90

Min. bursting pressure

150 bar

2175 psi

15 MPa

Pressure rating

75 bar

1087 psi

7.5 Mpa

Type of pressure

relative pressure; vacuum

Electrical data

Operating voltage [V]	9.6...36 DC; (communication mode: 18...32)
Current consumption [mA]	< 45
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	170
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

-1...10 bar

-14.5...145 psi

-100...1000 kPa

-0.1...1 MPa

Set point SP

-0.9...10 bar

-13...145 psi

-0.09...1 MPa

Reset point rP

-0.95...9.95 bar

-14...144 psi

-0.095...0.995 MPa

In steps of

0.05 bar

1 psi

0.005 MPa

Factory setting

	SP1 = 2.50 bar	rP1 = 2.30 bar
	SP2 = 7.50 bar	rP2 = 7.30 bar
	OUT1 = Hno	OUT2 = Hno

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,1
Long-term stability [% of the span]	< ± 0,1; (per year)
Temperature coefficient zero point [% of the span / 10 K]	0,2; (0...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,2; (0...80 °C)

Response times

Response time [ms]	< 3
Damping process value dAP in steps [s]	0,003 - 0,006 - 0,010 - 0,017 - 0,060 - 0,125 - 0,250 - 0,500

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-40...100
Protection	IP 68; (7 days / 1 m water depth / 0.1 bar)

Tests / approvals

EMC

immunity	EN 61000-6-2
EN 61000-4-2 ESD	4 kV contact discharge / 15 kV air discharge
EN 61000-4-3 HF radiated	20 V/m
EN 61000-4-4 Burst	4 kV coupling clamp
EN 61000-4-5 Surge	0,5 kV supply / 1 kV signal for DC units
EN 61000-4-6 HF conducted	30 V

Shock resistance

DIN IEC 60068-2-27 / DIN IEC 60068-2-29	1000 g
DIN EN 61373	category 3

Vibration resistance

DIN IEC 68-2-6	20 g (10...2000 Hz)
DIN EN 60068-2-64	14 g
DIN EN 61373	category 2

MTTF [years]

309

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	225
Materials	stainless steel (1.4301 / 304); FKM; EPDM/X; PA
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Process connection	threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated	no (can be retrofitted)

Displays / operating elements

Display

operation	2 x LED, green
switching status	2 x LED, yellow

Teach function

yes

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PP0524-00 — 13.04.2023 —
