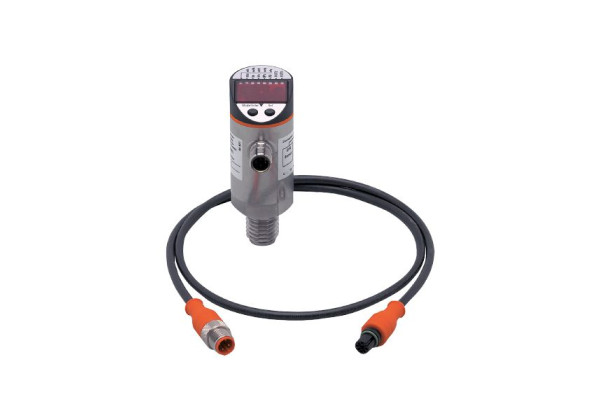

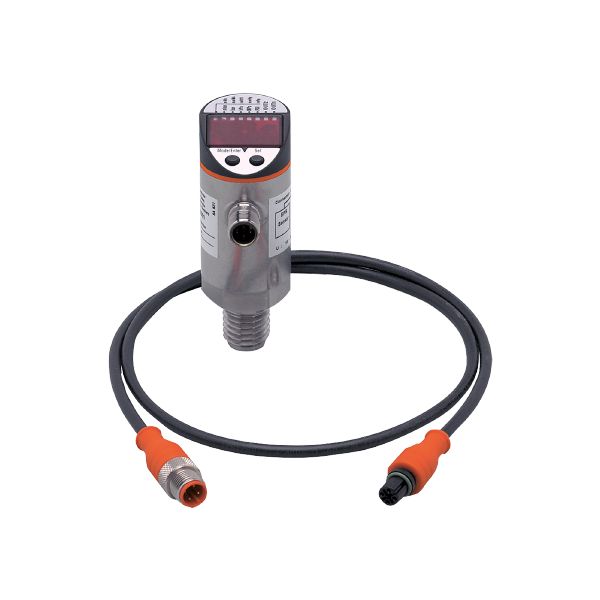

PP2001 - efector500-PP-PRG- /QFRKG/US/ /

Code: PP2001

For diagnosis and parameterisation of pressure sensors
Automatic recognition of type, measuring range and current parameter set of the sensor
Indication of the current measured value of the sensor in the display
User-friendly sharing of the parameter set of one sensor with other sensors of the same type

Application

Special feature	Gold-plated contacts
Application	for industrial applications

Electrical data

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 40
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1.5...10; (depending on the connected sensor)

Outputs

Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Response times

Max. measuring/display cycle [ms]	200

Software / programming

Parameter setting options	depending on the connected sensor

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; (for unit with screwed-on connectors)

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

20 g (10...2000 Hz)

MTTF [years]

229

Mechanical data

Weight [g]	333.5
Dimensions [mm]	100 x 34 x 48
Materials	stainless steel (1.4404 / 316L); CO-PC; PBT; FKM

Displays / operating elements

Display

Display unit	6 x LED, green
switching status	2 x LED, yellow
function display	alphanumeric display, 4-digit
measured values	alphanumeric display, 4-digit

Accessories

Items supplied

jumper cables: 0,8 m, for parameter setting in the offline mode

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PP2001-01 — 13.04.2023 —
