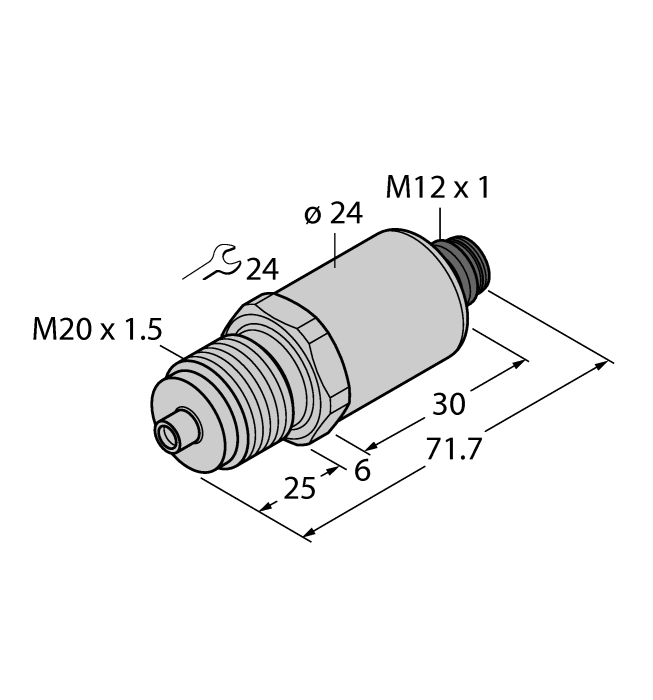

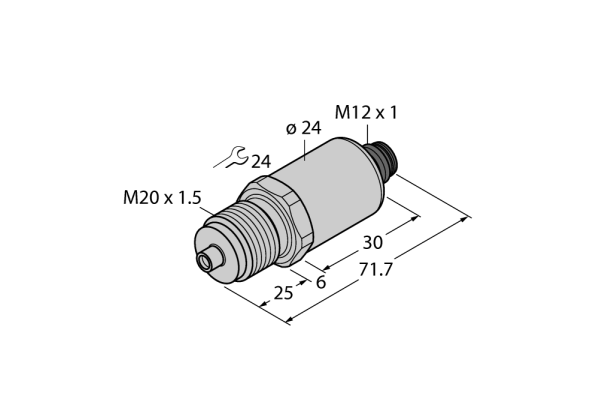

Pressure Transmitter PT350R-2020-U3-H1143/X
Brand: TURCK
Code: 100000763
- Protection class
- IP67
- Output function
- Analog output voltage
- Approvals
- cULus
- Design
- Without display
- Process connection
- M20 × 1.5 male thread, front sealing and manometer (combi)
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Stainless-steel/Plastic
- Housing quality
- 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Media temperature min. (°C)
- -40
- Media temperature max. (°C)
- 135
- Ambient temperature min. (°C)
- -30
- Ambient temperature max. (°C)
- 85
- Operating voltage
- DC
- Electrical output
- Voltage output (3-wire)
- Pressure type
- Relative pressure
- Material pressure transducer
- Stainless steel 1.4435 (AISI 316L)
- Pressure range
- 0…350 bar
