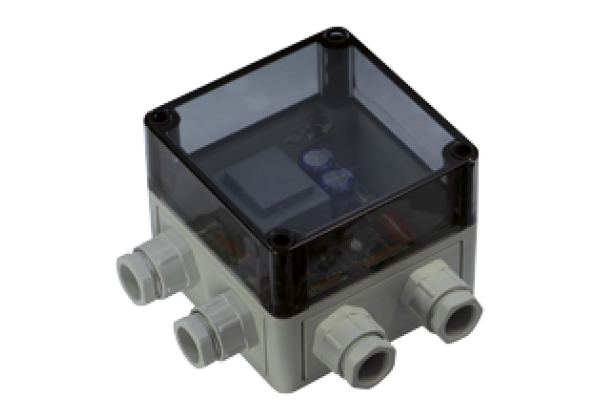

Control unit PS1/31
Brand: Pepperl+Fuchs
Code: PS1/31
Switching device for the simple electrical connection of sensors, Relay output for high power, 10-way programming switch for time functions and switching connection modes, Function: Switch device for sensor supply
Datasheet excerpt: Technical data of PS1/31
| Indicators/operating means | ||
|---|---|---|
| Function indicator | LED green: power on (according to safety) LED yellow: switching state, lights up for energized relay | |
| Control elements | 10-fold programming switch for timer functions and switching type | |
| Electrical specifications | ||
| Operating voltage | 115 / 230 V AC | |
| Power consumption | 5 VA (0.25 A miniature fuse) | |
| Output | ||
| Switching type | light/dark on selectable programmable | |
| Signal output | Relay, 1 alternator | |
| Switching voltage | 240 V AC | |
| Switching current | 1 A | |
| Switching frequency | 20 Hz | |
| Response time | 20 ms | |
| Timer function | ON delay (GAN), OFF delay (GAB), ON delay-OFF delay (GAN-GAB), 0.1... 15 s programmable | |
| Other outputs | Sensor power supply 24 VDC, max. 180 mA | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Approvals | CE | |
| Ambient conditions | ||
| Ambient temperature | 0... 60 °C (32... 140 °F) | |
| Storage temperature | -20... 75 °C (-4... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP55 | |
| Connection | 4 PG16 screwed connections , cage tension terminals in the terminal space | |
| Material | ||
| Housing | Plastic with transparent cover | |
| Installation | screw fixing Only the four holes under the cover screws can be used for mounting. | |
| Mass | 600 g | |
