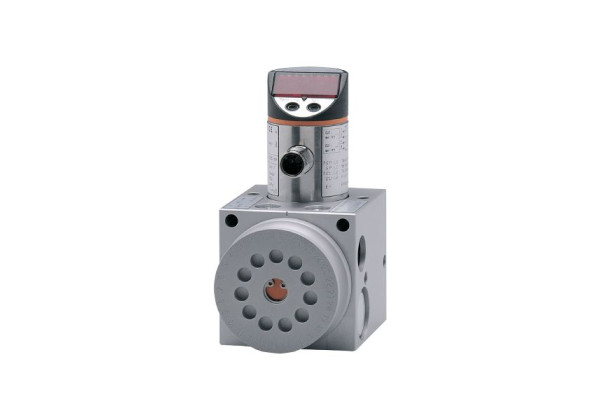

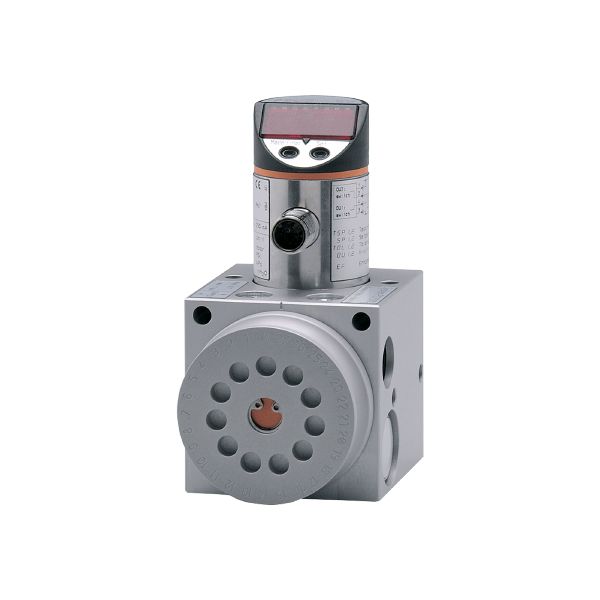

PS7570 - efector500-CONTROL UNIT PART SEAT MONITOR
Brand: IFM Electronic
Code: PS7570
- Precise part seat monitoring by means of backpressure measurement
- For use in machine tools and machining centres
- Reliable measurement of very short distances up to 0.01 mm
- Easy adjustment to the required gap distance using the mechanical setting dial
- Two switch points: Fine / coarse detection and additional function check
Application
| Application | for industrial applications |
|---|
Outputs
| Output signal | switching signal; (2 x normally open / normally closed) |
|---|---|
| Electrical design | PNP/NPN |
Tests / approvals
| MTTF [years] | 161 |
|---|
Mechanical data
| Weight [g] | 862 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PS7570-00 — 13.04.2023 —
