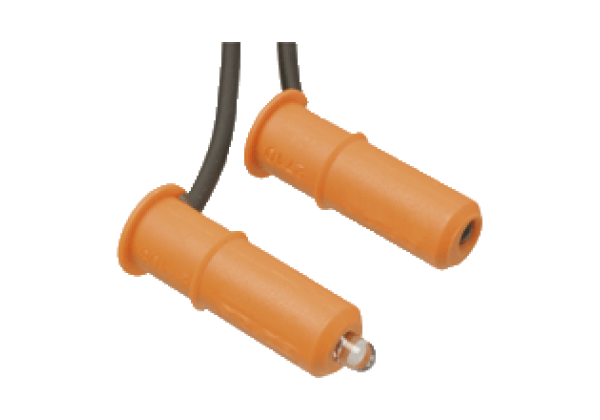

Safety edge PSE4-SL-01
Brand: Pepperl+Fuchs
Code: PSE4-SL-01
Safety thru-beam sensor, Evaluation via safety control unit PSE4-SC-01, Modulated infrared light, For mounting in sensor strip PSE4-RUB and -ROI, No additional mounting materials required, Component of PSE4 modular system
Datasheet excerpt: Technical data of PSE4-SL-01
| Product Description |
|---|
| Safety photoelectric sensor for the PSE4 series |
| General specifications | ||
|---|---|---|
| Effective detection range | 0.4... 10 m | |
| Number of protective field beams | 1 | |
| Light source | LED | |
| Light type | modulated infrared light | |
| Functional safety related parameters | ||
| Performance level (PL) | PL e | |
| Category | Cat. 4 | |
| Mission Time (TM) | 20 a | |
| Electrical specifications | ||
| Operating voltage | Power supply via control unit | |
| Conformity | ||
| Functional safety | ISO 13849-1 | |
| Product standard | EN 12978 ; ISO 13856-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed File no: NRNT.E344450 | |
| TÜV approval | TÜV Rheinland 968/M 301.00/11 | |
| Ambient conditions | ||
| Ambient temperature | 5... 55 °C (41... 131 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP68 | |
| Connection | fixed cable Emitter: 10 m Receiver: 2.9 m | |
| Mech. capacity | 500 N | |
| Material | ||
| Housing | Polyethylene (PE) ; Emitter: gray / Receiver: black | |
| Cable | PUR | |
| Mass | Per 150 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273401 |
| ECLASS 12.0 | 27272790 |
| ECLASS 11.0 | 27272790 |
| ECLASS 10.0.1 | 27272790 |
| ECLASS 9.0 | 27272790 |
| ECLASS 8.0 | 27272790 |
| ECLASS 5.1 | 27272790 |
| ETIM 9.0 | EC002887 |
| ETIM 8.0 | EC002887 |
| ETIM 7.0 | EC002887 |
| ETIM 6.0 | EC002887 |
| ETIM 5.0 | EC002592 |
| UNSPSC 12.1 | 46171620 |
