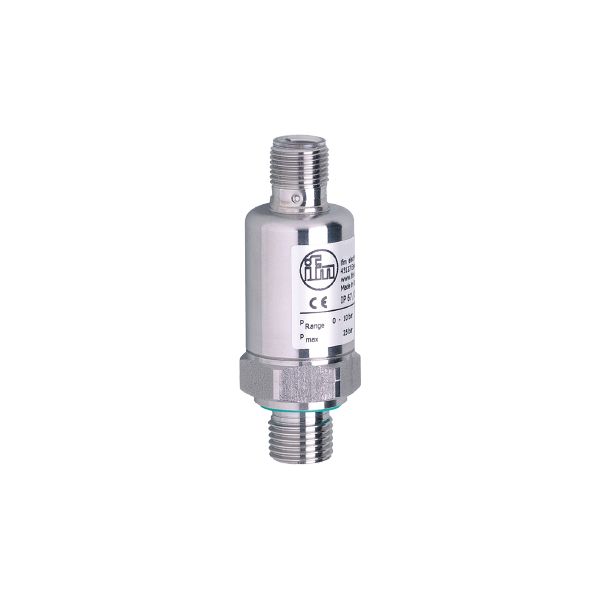

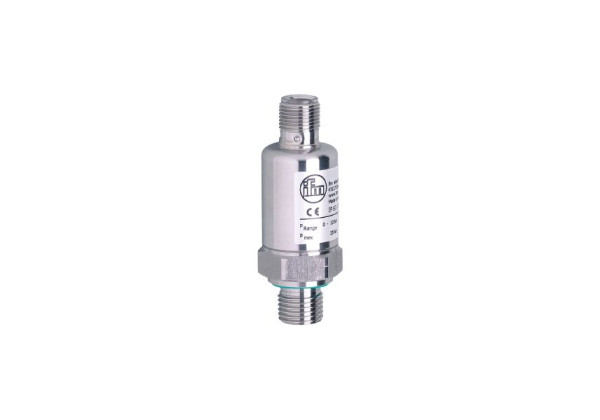

PT9552 - efector500-PT-100-SBG14-B-DVG/US/ /W
Brand: IFM Electronic
Code: PT9552
- For the reliable detection of the system pressure in mobile machines
- High shock and vibration resistance
- Excellent repeatability and low linearity error
- Lifespan of more than 50 million pressure cycles
- Compact and robust stainless steel housing for use where space is restricted
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 | |||
|---|---|---|---|---|
| Measuring range |
| |||
| Process connection | threaded connection G 1/4 external thread |
Application
| Application | for mobile applications | |||
|---|---|---|---|---|
| Media | liquids and gases | |||
| Medium temperature [°C] | -25...90; (on request: -40...100 °C) | |||
| Min. bursting pressure |
| |||
| Pressure rating |
| |||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 16...36 DC |
|---|---|
| Current consumption [mA] | < 6 |
| Min. insulation resistance [MΩ] | 100; (80 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 2000 |
Measuring/setting range
| Measuring range |
|
|---|
Accuracy / deviations
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation [% of the span] | < ± 1,0; (incl. drift when overtightened, zero point and span error) |
| Linearity deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS) |
| Hysteresis deviation [% of the span] | < ± 0,2 |
| Long-term stability [% of the span] | < ± 0,1; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
Response times
| Step response time analogue output [ms] | 8 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
| ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||||||||||
| Vibration resistance |
| ||||||||||||||||
| MTTF [years] | 1069 | ||||||||||||||||
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 82.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PA |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM |
| Min. pressure cycles | 50 million |
| Process connection | threaded connection G 1/4 external thread |
| Restrictor element integrated | yes |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PT9552-01 — 29.11.2012 —
