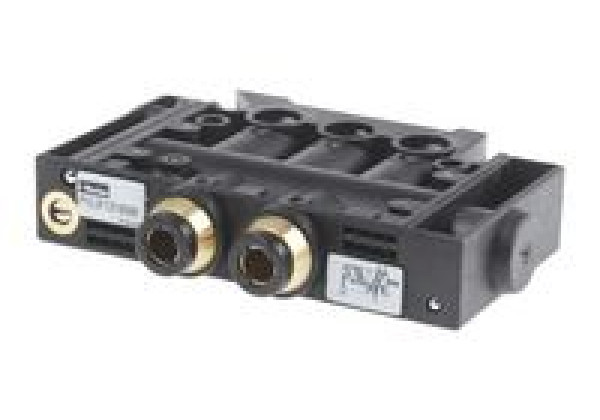

PVL-B121606 Parker 5/2 Pneumatic Control Valve Pilot/Spring G 1/8 PVL Series
Brand: Parker
Code: PVL-B121606
Manufacturer Series = PVL Mounting Style = Block, DIN Rail Function = 5/2 Connection Port Thread = G 1/8 Actuation Type = Pilot/Spring Body Material = Plastic Maximum Flow Rate = 900L/min Minimum Operating Pressure = 2bar Minimum Operating Temperature = -15°C Maximum Operating Temperature = +60°C Thread Size = 6mm Compressed air, while generally considered as a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended. PVL Manifold Valves. High Flow, compact and lightweight DIN-rail mounting, manifold valve system, 15mm pitch. Integral 6mm Ø push-in connectors Choice of solenoid or pilot operators 2 to 10 bar operating pressure (3 bar minimumfor spring-return operation) DIN-rail or surface-block mounting |
Check out any spare parts and components from the Parker catalog!
Do you want to order a PVL-B121606 Parker 5/2 Pneumatic Control Valve Pilot/Spring G 1/8 PVL Series with code: PVL-B121606?
Leave your request on our website for immediate assistance!
