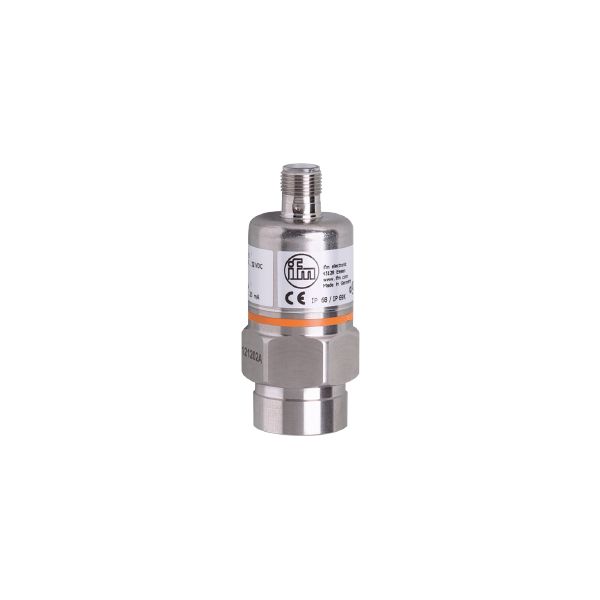

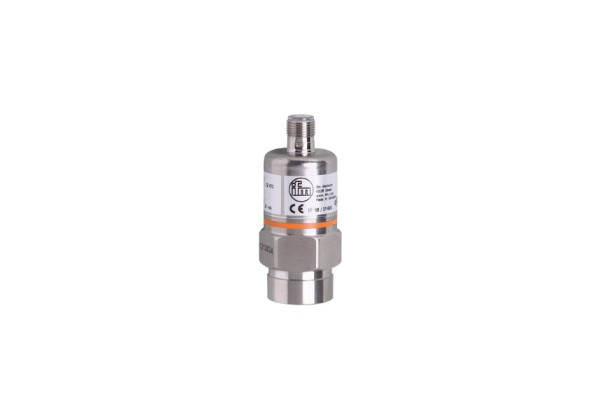

PX3023 - efector500-PA-025-RBR14-A-ZVG/US/ /V

Code: PX3023

Precise linear 4...20 mA output signal
High repeatability and low linearity error
With long-term stability thanks to high overload protection
Robust stainless steel housing for use in harsh industrial environments
Wide operating temperature range

Product characteristics

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range [bar]	-1...25
Process connection	threaded connection G 1/4 internal thread

Application

Special feature	Gold-plated contacts
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...90; (on request: -40...90 °C)
Min. bursting pressure [bar]	350
Pressure rating [bar]	150
Type of pressure	relative pressure

Electrical data

Operating voltage [V]	9.6...32 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection	yes

Measuring/setting range

Measuring range [bar]	-1...25

Accuracy / deviations

Repeatability [% of the span]	< 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	0,1; (0...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,2; (0...80 °C)

Response times

Step response time analogue output [ms]	3

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	30 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
radiation of interference	according to the automotive directive 2004/104/EC / CISPR 25
immunity	according to the automotive directive 2004/104/EC / ISO 11452-2
HF radiated	100 V/m
pulse resistance	ISO 7637-2 / severity level 3

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

20 g (10...2000 Hz)

MTTF [years]

555

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	223
Materials	stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Process connection	threaded connection G 1/4 internal thread
Restrictor element integrated	no (can be retrofitted)

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PX3023-00 — 13.04.2023 —
