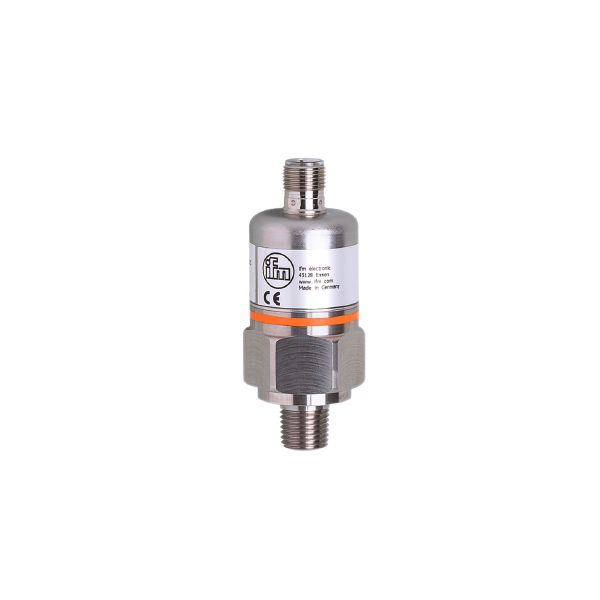

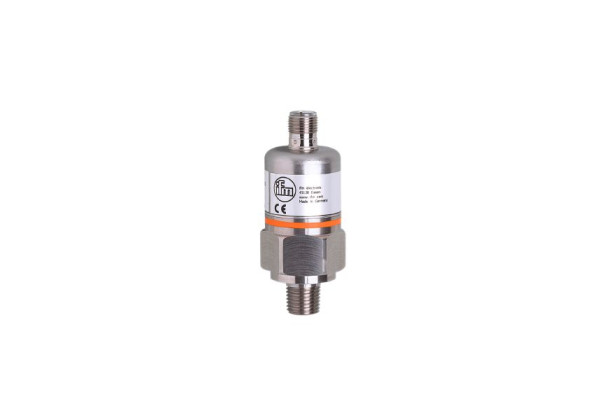

PX3289 Pressure transmitter with ceramic measuring cell PA-,10BRBN14-A-ZVG/US/ /V

Brand: IFM Electronic

Code: PX3289

Reliable detection of system pressure in industrial and mobile applications
Precise analogue output
With long-term stability thanks to high overload protection
Lifespan of more than 100 million pressure cycles
High shock and vibration resistance

Product characteristics

Number of inputs and outputs

Number of analogue outputs: 1

Measuring range

0...0.1 bar

0...100 mbar

0...1.45 psi

0...40.16 inH2O

0...10 kPa

Process connection

threaded connection 1/4" NPT external thread internal thread:M5

Application

Special feature

Gold-plated contacts

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...90; (on request: -40...90 °C)

Min. bursting pressure

30000 mbar

435 psi

12030 inH2O

3000 kPa

Pressure rating

4000 mbar

58 psi

1606 inH2O

400 kPa

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	9.6...32 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection	yes

Measuring/setting range

Measuring range

0...0.1 bar

0...100 mbar

0...1.45 psi

0...40.16 inH2O

0...10 kPa

Accuracy / deviations

Repeatability [% of the span]	< 0,2; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5 (BFSL) / < ± 1 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]	< ± 0,1; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,5; (0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,5; (0...80 °C)

Response times

Step response time analogue output [ms]	3

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 68

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	30 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
radiation of interference	according to the automotive directive 2004/104/EC
CISPR 25
immunity	according to the automotive directive 2004/104/EC
ISO 11452-2 HF radiated	100 V/m
ISO 7637-2 pulse	severity level 3

Shock resistance

DIN EN 60068-2-27	50 g (11 ms)
DIN EN 61373	category 3

Vibration resistance

DIN EN 60068-2-6	20 g (10...2000 Hz)
DIN EN 61373	category 2

MTTF [years]

555

UL approval

File number UL

E174189

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	210.1
Materials	stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Tightening torque [Nm]	50; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection 1/4" NPT external thread internal thread:M5
Restrictor element integrated	no (can be retrofitted)

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PX3289-00 — 02.08.2021 —
