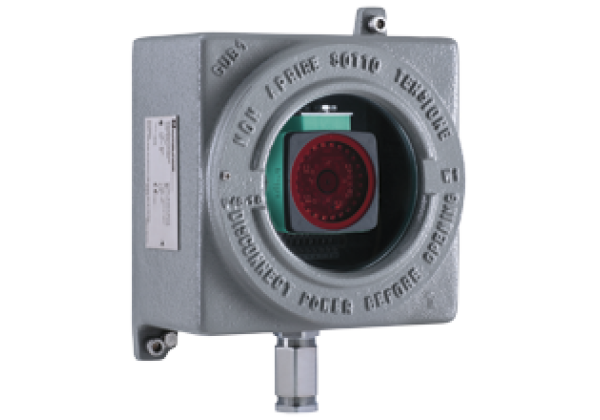

Optical reading head PXV100-F200-R4-V19-Ex
Brand: Pepperl+Fuchs
Code: PXV100-F200-R4-V19-Ex
Optical reading head for hazardous area, Explosion protection for use in Zone 1, Zone 2, Zone 21 and Zone 22, RS-485 interface, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Travel ranges up to 10 km
Datasheet excerpt: Technical data of PXV100-F200-R4-V19-Ex
| Product Description |
|---|
| Optical reading head for hazardous area |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 8 m/s | |
| Measuring range | max. 10000 m | |
| Light type | Integrated LED lightning (red) | |
| Scan rate | 40 s-1 | |
| Read distance | 90mm (from outer housing window) | |
| Depth of focus | ± 50 mm | |
| Reading field | 115 mm x 73 mm | |
| Ambient light limit | 100000 Lux | |
| Accuracy | ± 0.2 mm | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS , Global shutter | |
| Processor | ||
| Clock pulse frequency | 600 MHz | |
| Speed of computation | 4800 MIPS | |
| Functional safety related parameters | ||
| MTTFd | 100 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indication | 7 LEDs (communication, alignment aid, status information) | |
| Electrical specifications | ||
| Operating voltage | 15... 30 V DC , PELV | |
| No-load supply current | max. 200 mA | |
| Power consumption | 3 W | |
| Interface | ||
| Interface type | RS 485 interface | |
| Data output code | binary code | |
| Transfer rate | 38400... 230400 Bit/s | |
| Termination | Switchable terminal resistor | |
| Query cycle time | ≥ 10 ms | |
| Interface 2 | ||
| Interface type | USB Service | |
| Input | ||
| Input type | 1 to 3 functional inputs , programmable | |
| Input impedance | ≥ 27 kΩ | |
| Output | ||
| Output type | 1 to 3 switch outputs , PNP , programmable , short-circuit protected | |
| Switching voltage | Operating voltage | |
| Switching current | 150 mA each output | |
| Standard conformity | ||
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Approvals and certificates | ||
| IECEx approval | IECEx INE 14.0042X | |
| ATEX approval | INERIS 14 ATEX 0035X Device type: GUBW1.D.OS-PXV100-F200-R4-V19 | |
| Marking |  II 2 GDEx db IIC T6 Gb Ex tb IIIC T85°C Db | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Mechanical specifications | ||
| Connection type | Connection terminals, max. conductor cross-section 2.5 mm2 | |
| Conductor cross section | 0.13... 2.5 mm2 | |
| Cable gland | 3... 8.5 mm | |
| Enclosure cover | threaded round cover | |
| Cover fixing | flamepath thread | |
| Cover seal | none, O-ring for IP66/67 | |
| Housing width | 202 mm | |
| Housing height | 279 mm | |
| Housing depth | 134 mm | |
| Degree of protection | IP66 (IP66/67 with O-ring) | |
| Material | ||
| Enclosure | aluminum alloy | |
| Glass | thermo-resistant tempered glass | |
| Finish | epoxy coated RAL 7005 (grey) | |
| O-Ring | silicone | |
| Mass | approx. 7 kg | |
| Grounding | M6 external grounding points | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270918 |
| ECLASS 12.0 | 27270918 |
| ECLASS 11.0 | 27270701 |
| ECLASS 10.0.1 | 27270701 |
| ECLASS 9.0 | 27270701 |
| ECLASS 8.0 | 27270701 |
| ECLASS 5.1 | 27270701 |
| ETIM 9.0 | EC004672 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
