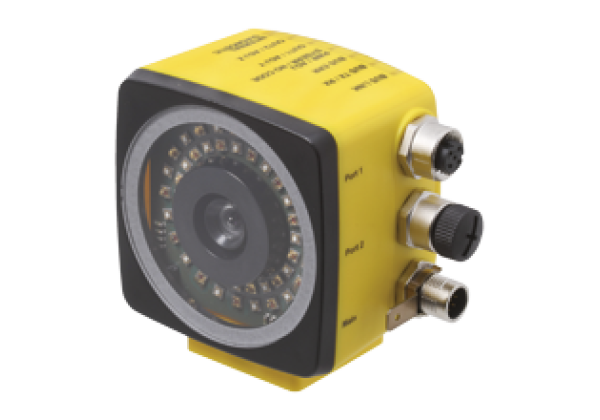

Optical reader - safePXV PXV100A-F200-B28-V1D
Brand: Pepperl+Fuchs
Code: PXV100A-F200-B28-V1D
Read head for incident light positioning system, SIL 3 (EN 61508), Category 4 PL e (EN ISO 13849), PROFINET interface, PROFIsafe interface, Safe, non-contact positioning on Data Matrix code tape, Traverse distance up to 100 km , Mechanically rugged: no wearing parts, long operating life, maintenance-free
Datasheet excerpt: Technical data of PXV100A-F200-B28-V1D
| Product Description |
|---|
| Read head for incident light positioning system |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 8 m/s | |
| Measuring range | max. 100000 m | |
| Light type | Integrated LED lightning (red/blue) | |
| Read distance | 100 mm | |
| Depth of focus | ± 30 mm | |
| Field of view | typ. 120 mm x 80 mm | |
| Ambient light limit | 30000 Lux | |
| Accuracy | ||
| Non safety-related X | ± 0.2 mm | |
| Safety-related X | See the original instructions | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS , Global shutter | |
| Processor | ||
| Clock pulse frequency | 600 MHz | |
| Speed of computation | 4800 MIPS | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Category | Cat. 4 | |
| Reaction time | 165 ms | |
| MTTF | 41 a | |
| MTTFd | 104.74 a | |
| Mission Time (TM) | 20 a | |
| PFH | 1.09 E-8 typ. | |
| Indicators/operating means | ||
| LED indication | 7 LEDs (communication, status messages) | |
| Electrical specifications | ||
| Operating voltage | 20... 30 V DC , PELV | |
| No-load supply current | max. 300 mA | |
| Power consumption | 6 W | |
| Interface | ||
| Interface type | 100 BASE-TX | |
| Protocol | PROFINET IO Real-Time (RT) Conformance class B | |
| Transfer rate | 100 MBit/s | |
| Conformity | ||
| Fieldbus standard | PROFIsafe in accordance with IEC 61784-3-3; profile 2.4 | |
| Functional safety | EN ISO 13849-1:2015 ; EN 61508:2010 part 1-7 ; EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 | |
| Shock resistance | EN 60068-2-27:2009 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-7:2015 | |
| Photobiological safety | Risk group 2 according to IEC 62471 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| TÜV approval | TÜV Rheinland 01/205/5669.01/20 | |
| Ambient conditions | ||
| Operating temperature | 0... 45 °C (32... 113 °F) , -20... 45 °C (-4... 113 °F) (noncondensing; prevent icing on the lens!) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Altitude | max. 2000 m above MSL | |
| Mechanical specifications | ||
| Connection type | 8-pin, M12x1 connector, standard 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN) | |
| Housing width | 70 mm | |
| Housing height | 70 mm | |
| Housing depth | 50 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PC/ABS | |
| Mass | approx. 200 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270918 |
| ECLASS 12.0 | 27270918 |
| ECLASS 11.0 | 27270701 |
| ECLASS 10.0.1 | 27270701 |
| ECLASS 9.0 | 27270701 |
| ECLASS 8.0 | 27270701 |
| ECLASS 5.1 | 27270701 |
| ETIM 9.0 | EC004672 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 43211711 |
