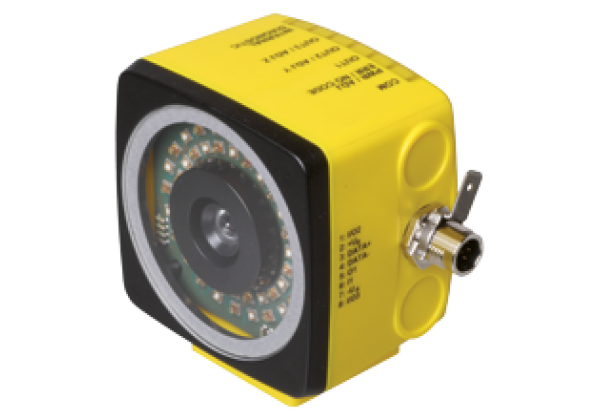

Optical reader - safePXV/PUS PXV80AQS-F200-R4-V19
Brand: Pepperl+Fuchs
Code: PXV80AQS-F200-R4-V19
Read head for use with the safe evaluation unit PUS-* (series), RS-485 interface, Noncontact positioning on Data Matrix tape PXV...-AA..., Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Traverse distance up to 100 km , Output of code quality, Pollution detection
Datasheet excerpt: Technical data of PXV80AQS-F200-R4-V19
| Product Description |
|---|
| Read head for use with the safe evaluation unit PUS-* (series) |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 10 m/s | |
| Measuring range | max. 100000 m | |
| Light type | Integrated LED lightning (red/blue) | |
| Latency | 20 ms ±0.6 | |
| Close time | 70 µs (During this time a change of the color specification is delayed) | |
| Read distance | 80 mm | |
| Depth of focus | ± 25 mm | |
| Field of view | 100 mm x 65 mm | |
| Ambient light limit | 30000 Lux | |
| Resolution | ||
| Non safety-related X | ± 1 mm | |
| Safety-related X | ± 1 cm | |
| Accuracy | ||
| Non safety-related X | ± 0.2 mm | |
| Safety-related X | See the original instructions | |
| Measuring frequency | 100 Hz | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS , Global shutter | |
| Processor | ||
| Clock pulse frequency | 600 MHz | |
| Speed of computation | 4800 MIPS | |
| Time delay before availability | 6 s | |
| Functional safety related parameters | ||
| MTTFd | 96 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indication | 7 LEDs (communication, alignment aid, status information) | |
| Electrical specifications | ||
| Operating voltage | 14.5... 30 V DC , PELV (with unloaded switching outputs) | |
| No-load supply current | max. 200 mA | |
| Power consumption | 3 W max: 3.7 W | |
| Interface | ||
| Interface type | RS 485 interface | |
| Data output code | binary code | |
| Transfer rate | 115200 Bit/s | |
| Termination | 120 Ω, switchable | |
| Query cycle time | ≥ 7 ms | |
| Input | ||
| Input type | Input 1: enable blue (active high) Input 2: enable red (active high) Input 3: color change (low:red, high: blue) | |
| Level | Low: 0 V… 8 V High: 10 V … +Vb | |
| Input resistance | 32 kΩ | |
| Input capacity | 500 pF | |
| Output | ||
| Output type | 1 switch output PNP , PNP , programmable , short-circuit protected | |
| Switching voltage | Operating voltage | |
| Switching current | 150 mA each output | |
| Standard conformity | ||
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | EN 60068-2-27:2009 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | 0... 60 °C (32... 140 °F) , -20... 60 °C (-4... 140 °F) (noncondensing; prevent icing on the lens!) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Connection type | 8-pin, M12 x 1 connector | |
| Housing width | 70 mm | |
| Housing height | 70 mm | |
| Housing depth | 50 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PC/ABS | |
| Mass | approx. 160 g | |
| General information | ||
| Note | 0° orientation to the DataMatrix code tape | |
