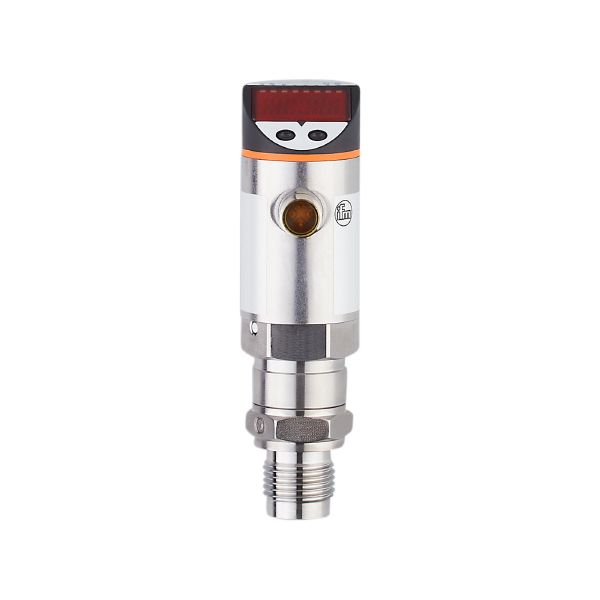

PY2033 - efector500-PN-025-RDR12-MFRKG/US/ /V
Brand: IFM Electronic
Code: PY2033
- Two switching outputs, one of them programmable as analogue output
- Clearly visible 4-digit LED display
- Country-specific pressure units selectable
- With long-term stability thanks to high overload protection
- Selectable output polarity
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |||
|---|---|---|---|---|
| Measuring range |
| |||
| Process connection | threaded connection G 1/2 external thread |
Application
| Special feature | Gold-plated contacts | |||
|---|---|---|---|---|
| Application | flush mountable for industrial applications; for industrial applications | |||
| Media | liquids and gases | |||
| Medium temperature [°C] | -20...125 | |||
| Min. bursting pressure |
| |||
| Pressure rating |
| |||
| Type of pressure | relative pressure | |||
| No dead space | yes |
Electrical data
| Operating voltage [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | < 500 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20; (scalable 1:4) |
| Max. load [Ω] | (Ub - 10 V) / 20 mA |
| Analogue voltage output [V] | 0...10; (scalable 1:4) |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
| |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Set point SP |
| |||||||||
| Reset point rP |
| |||||||||
| Analogue start point |
| |||||||||
| Analogue end point |
| |||||||||
| In steps of |
| |||||||||
| Factory setting |
|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,4; (Turn down 1:1) |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the span] | < ± 0,3 (BFSL) / < ± 0,6 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) |
| Linearity deviation [% of the span] | < ± 0,5; (Turn down 1:1) |
| Hysteresis deviation [% of the span] | < ± 0,1; (Turn down 1:1) |
| Long-term stability [% of the span] | < ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,25; (0...80 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,25; (0...80 °C) |
Response times
| Response time [ms] | < 1.5 |
|---|---|
| Damping process value dAP [s] | 0.01...4 |
| Damping for the analogue output dAA [s] | 0.01...4 |
| Max. response time analogue output [ms] | 3 |
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 65 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 167.14 |
Mechanical data
| Weight [g] | 390 |
|---|---|
| Materials | stainless steel (1.4301 / 304); stainless steel (1.4435 / 316L); PC; PBT; PEI; PTFE |
| Materials (wetted parts) | stainless steel (1.4435 / 316L) |
| Min. pressure cycles | 10 million |
| Process connection | threaded connection G 1/2 external thread |
| Fill fluid for pressure transfer | NEOBEE (food grade, FDA compliant) |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PY2033-01 — 13.04.2023 —
