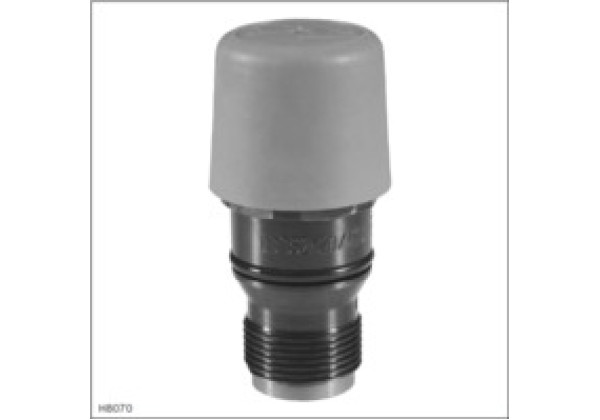

R901239727 Bosch Rexroth DBDS2K2X/420P330V Pressure relief valve, direct operated

Code: R901239727

Pressure relief valve, direct operated Type DBD..K

Pressure valve type DBD.. K refers to direct operated pressure relief valves to be installed in block designs. Theyare used for system pressure limitation. The system pressure can be set via the adjustment type. The valve is closed in initial position. Via control line and ball, the pressure in the main port acts on the spring plate. If the pressure in the main port rises above the value set at the compression spring, theball opens and the hydraulic fluid flows into the main port.

Adjustment type for pressure adjustment: Hexagon with protective cap
Nominal size: 2
Working pressure max.: 420 bar
Type of connection: Screw-in cartridge valve
Pressure rating: 330 bar
Seal material: FKM
Line connection: Pipe thread according to ISO 228/1
Equipment Directive: without type-examination procedure
