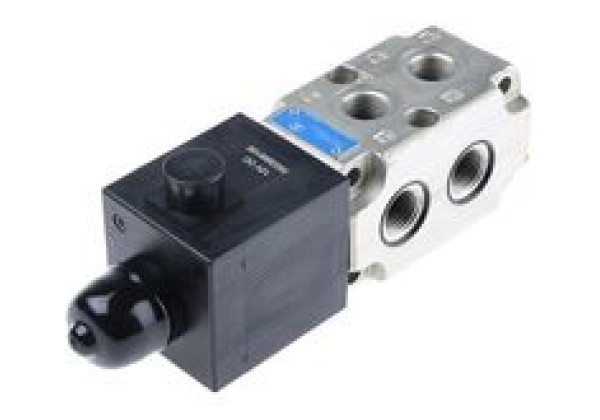

Bosch Rexroth Oil Control CETOP Mounting Hydraulic Flow Control Valve, R933003835, 6-way, 12V dc, 90L/min
Brand: Bosch Rexroth
Code: R933003835
Manufacturer Series = R93 Connection Port Thread = G 1/2 Number of Ports = 6-way Power Supply Voltage = 12V dc Maximum Operating Pressure = 300 bar Maximum Flow Rate = 90L/min Thread Standard = G Thread Size = 1/2in Diverter Valves. A range of hydraulic diverter valves with flow rates of either 20, 50 and 90 litres/min which when line mounted can provide up to five additional intermittent functions without affecting the original machine function. The valves can be bolted together to reduce lead paths and can provide a neat hydraulic installation. 20, 50 and 90 litre ve rsion available Up to 4 valves can be banked together 20 litre versions mounting bolts M5 x 85, 130 or 175 mm respectively, macimum 4 valves 50 and 90 litre versions mounting bolts M8 x 125, 190, 270 or 330 mm respectively, maximum 5 valves |
Check out any spare parts and components from the Bosch Rexroth catalog!
Do you want to order a Bosch Rexroth Oil Control CETOP Mounting Hydraulic Flow Control Valve, R933003835, 6-way, 12V dc, 90L/min with code: R933003835?
Leave your request on our website for immediate assistance!
