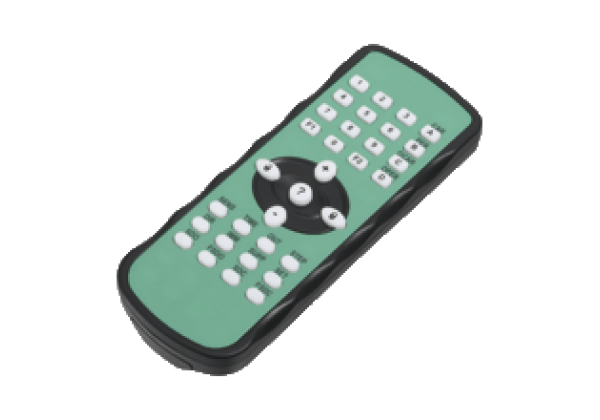

Remote control RADAR RC
Brand: Pepperl+Fuchs
Code: RADAR RC
Suitable for programming radar motion sensors from the RMS-D-RC, RAVE-D, and ECHO-D series, Convenient and precise adjustment of sensors with high mounting height, Also suitable for programming third-party brand products, Unidirectional operation
Datasheet excerpt: Technical data of RADAR RC
| Product Description |
|---|
| Infrared remote control for radar sensors |
| General specifications | ||
|---|---|---|
| Light type | infrared | |
| Electrical specifications | ||
| Operating voltage | battery: 2 AAA-size batteries included with delivery | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -10... 60 °C (14... 140 °F) | |
| Mechanical specifications | ||
| Material | black ABS | |
| Mass | 78 g | |
| Dimensions | 133 mm x 52 mm x 21.2 mm | |
| Suitable series | ||
| Series | RMS-D-RC , RAVE-D , ECHO-D | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270992 |
| ECLASS 10.0.1 | 27270992 |
| ECLASS 9.0 | 27270992 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
