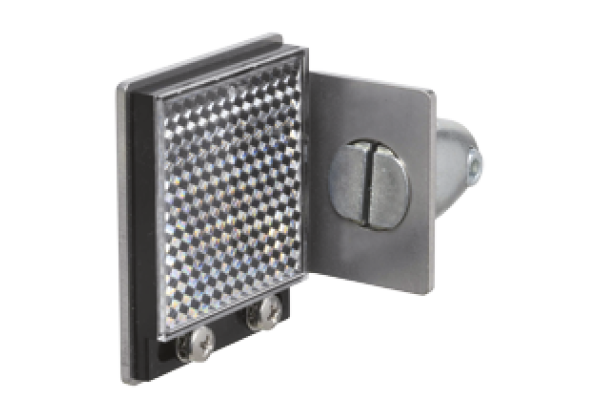

Reflector REF-H50 SET
Brand: Pepperl+Fuchs
Code: REF-H50 SET
Reflector, rectangular 51 mm x 61 mm, mounting holes, fixing strap
Datasheet excerpt: Technical data of REF-H50 SET
| Product Description |
|---|
| Reflector, rectangular 51 mm x 61 mm, mounting holes, fixing strap |
| General specifications | ||
|---|---|---|
| Construction type | rectangular | |
| Accessories provided | Stainless steel bracket with 2 x M4 x 10 cross-slotted pan head screws , stainless steel (ISO 7045) and 2 x flat washers , Stainless steel A2 , outer diameter: 9 mm, inner diameter: 4.3 mm, thickness: 0.8 mm (ISO 7089) and 2 x external tooth lock washers , Stainless steel A2 , outer diameter: 8 mm, inner diameter: 4.3 mm, thickness: 0.5 mm (DIN 6797, shape A) Clamping cylinder, zinc die-cast (factory pre-assembled) | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Material | PMMA/ABS | |
| Dimensions | 51 mm x 61 mm x 7.5 mm | |
| Mounting | mounting holes | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 10.0.1 | 27273601 |
| ECLASS 9.0 | 27273601 |
| ECLASS 8.0 | 27279203 |
| ECLASS 5.1 | 27279203 |
| ETIM 9.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 5.0 | EC002467 |
| UNSPSC 12.1 | 39111818 |
