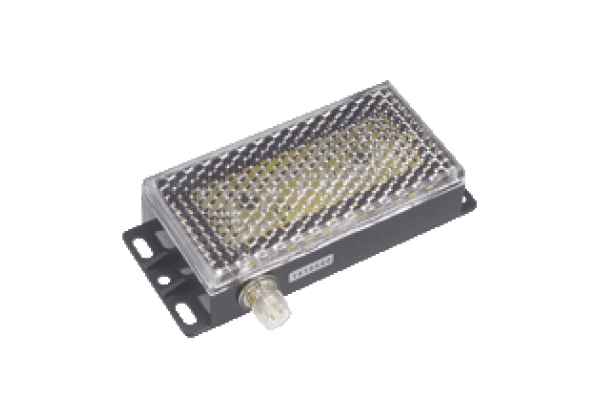

Reflector, heatable REF-HEATER120
Brand: Pepperl+Fuchs
Code: REF-HEATER120
Reflector, rectangular 120 mm x 51 mm, mounting holes, heatable 24 V DC
Datasheet excerpt: Technical data of REF-HEATER120
| Product Description |
|---|
| Reflector, rectangular 120 mm x 51 mm, mounting holes, heatable 24 V DC |
| General specifications | ||
|---|---|---|
| Construction type | rectangular | |
| Electrical specifications | ||
| Operating voltage | 24 V DC | |
| Operating current | 200 mA | |
| Power consumption | max. 6 W | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Connection | 4-pin, M12 x 1 connector | |
| Material | PMMA/ABS | |
| Dimensions | 119 mm x 51.5 mm x 27 mm | |
| Mounting | mounting holes | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 10.0.1 | 27273601 |
| ECLASS 9.0 | 27273601 |
| ECLASS 8.0 | 27279203 |
| ECLASS 5.1 | 27279203 |
| ETIM 9.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 5.0 | EC002467 |
| UNSPSC 12.1 | 39111818 |
