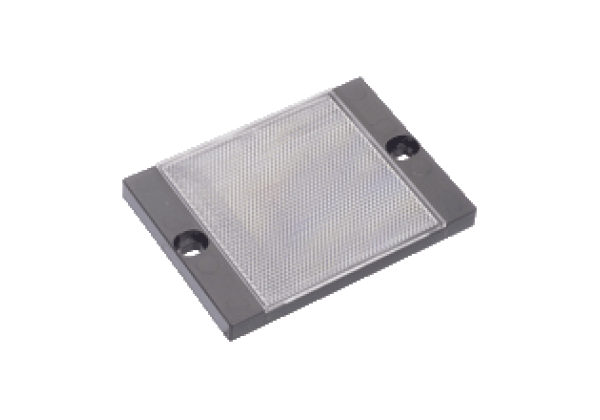

Reflector with micro-structure REF-MH82
Brand: Pepperl+Fuchs
Code: REF-MH82
Reflector with Micro-structure, rectangular 82 mm x 60 mm, mounting holes
Datasheet excerpt: Technical data of REF-MH82
| Product Description |
|---|
| Reflector with Micro-structure, rectangular 82 mm x 60 mm, mounting holes |
| General specifications | ||
|---|---|---|
| Construction type | rectangular | |
| Ambient conditions | ||
| Ambient temperature | -30... 85 °C (-22... 185 °F) | |
| Mechanical specifications | ||
| Material | PMMA/ABS | |
| Dimensions | 82 mm x 60 mm 7.4 mm | |
| Mounting | mounting holes | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 10.0.1 | 27273601 |
| ECLASS 9.0 | 27273601 |
| ECLASS 8.0 | 27279203 |
| ECLASS 5.1 | 27279203 |
| ETIM 9.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 5.0 | EC002467 |
| UNSPSC 12.1 | 39111818 |
