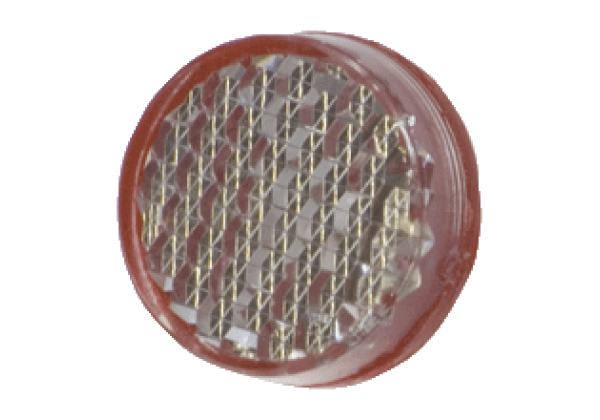

Reflector REF-S20F
Brand: Pepperl+Fuchs
Code: REF-S20F
Reflector, round ø 20 mm, screw fixing M4
Datasheet excerpt: Technical data of REF-S20F
| Product Description |
|---|
| Reflector, round ø 20 mm, screw fixing M4 |
| General specifications | ||
|---|---|---|
| Construction type | circular | |
| Ambient conditions | ||
| Ambient temperature | -30... 65 °C (-22... 149 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP68 | |
| Material | PET | |
| Dimensions | Diameter: 20 mm | |
| Mounting | screw fixing | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 10.0.1 | 27273601 |
| ECLASS 9.0 | 27273601 |
| ECLASS 8.0 | 27279203 |
| ECLASS 5.1 | 27279203 |
| ETIM 9.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 5.0 | EC002467 |
| UNSPSC 12.1 | 39111818 |
