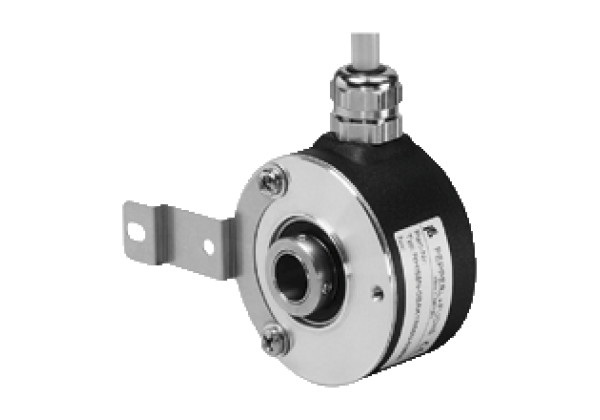

Incremental rotary encoder RHS58N-*******Z
Brand: Pepperl+Fuchs
Code: RHS58N-*******Z
Incremental encoder with sin/cos interface, 1024 or 2048 signal periods, Industrial standard housing ∅58 mm, Hollow shaft up to 15 mm, Temperature compensated, interpolateable voltage signals, Output type: sine / cosine
Datasheet excerpt: Technical data of RHS58N-*******Z
| General specifications | ||
|---|---|---|
| Pulse count | max. 2048 | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | sine / cosine | |
| Amplitude | 1 Vss ± 10 % | |
| Load current | max. per channel 20 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 200 kHz (3 dB limit) | |
| Connection | ||
| Cable | ∅6.5 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP54 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | DIN EN 61000-6-2 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -5... 80 °C (23... 176 °F) , movable cable -20... 80 °C (-4... 176 °F), fixed cable | |
| Storage temperature | -40... 100 °C (-40... 212 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 290 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | ≤ 40 gcm2 | |
| Starting torque | ≤ 2.5 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
