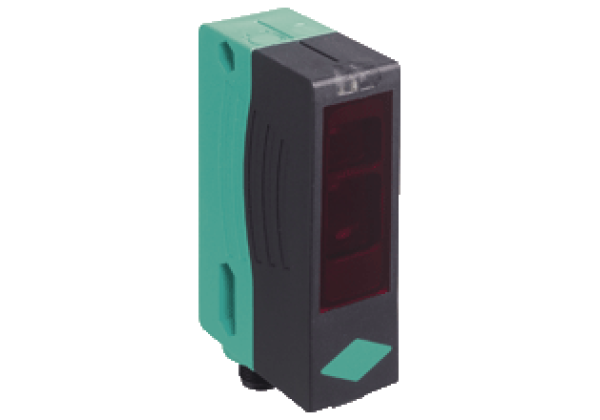

Retroreflective sensor RL29-55/73c/136
Brand: Pepperl+Fuchs
Code: RL29-55/73c/136
Retroreflective sensor with polarization filter, Highly visible LED, Powerful push-pull output, Optimal price/power ratio, Protection class II
Datasheet excerpt: Technical data of RL29-55/73c/136
| Product Description |
|---|
| Retroreflective sensor with polarization filter |
| General specifications | ||
|---|---|---|
| Effective detection range | 0.1... 7 m | |
| Threshold detection range | 10 m | |
| Reference target | H85 reflector | |
| Light source | LED, 660 nm | |
| Light type | modulated visible red light | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 150 mm at a distance of 7 m | |
| Opening angle | Emitter: 1.2 ° , Receiver: 2 ° | |
| Ambient light limit | 80000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 1982.2 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED yellow, light with free light beam , flashes when falling short of the stability control | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , class 2 | |
| Ripple | 10 % | |
| No-load supply current | ≤ 30 mA | |
| Output | ||
| Switching type | dark-on | |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 500 Hz | |
| Response time | 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 54.3 mm | |
| Degree of protection | IP65 | |
| Connection | Plastic connector M12 x 1, 4-pin | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | plastic | |
| Mass | 70 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
