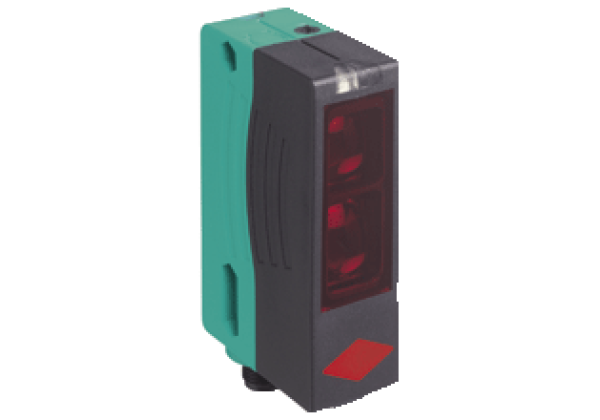

Background suppression sensor RL29-8-H-1200-RT/73c/136
Brand: Pepperl+Fuchs
Code: RL29-8-H-1200-RT/73c/136
Background suppression sensor, Highly visible LED, Good alignability due to red transmission LED, Minimal black-white difference, Powerful push-pull output, Optimal price/power ratio
Datasheet excerpt: Technical data of RL29-8-H-1200-RT/73c/136
| Product Description |
|---|
| Background suppression sensor |
| General specifications | ||
|---|---|---|
| Detection range | 30... 1200 mm , adjustable | |
| Detection range min. | 20... 200 mm | |
| Detection range max. | 30... 1200 mm | |
| Background suppression | max. + 10 % of the upper limit of the detection range | |
| Light source | LED 660 nm | |
| Light type | modulated visible red light | |
| Black-white difference (6 %/90 %) | < 35 % at 1200 mm sensor range | |
| Diameter of the light spot | approx. 25 mm at a distance of 1200 mm | |
| Opening angle | Emitter: 1.2 ° , Receiver: 2 ° | |
| Ambient light limit | 50000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 720 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED yellow: switching state | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , class 2 | |
| Ripple | 10 % | |
| No-load supply current | ≤ 40 mA | |
| Output | ||
| Switching type | light-on | |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 125 Hz | |
| Response time | 4 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| Protection class | II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 54.3 mm | |
| Degree of protection | IP65 | |
| Connection | Plastic connector M12 x 1, 4-pin | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | plastic | |
| Mass | 70 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270904 |
| ECLASS 10.0.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 5.1 | 27270904 |
| ETIM 9.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 5.0 | EC002719 |
| UNSPSC 12.1 | 39121528 |
